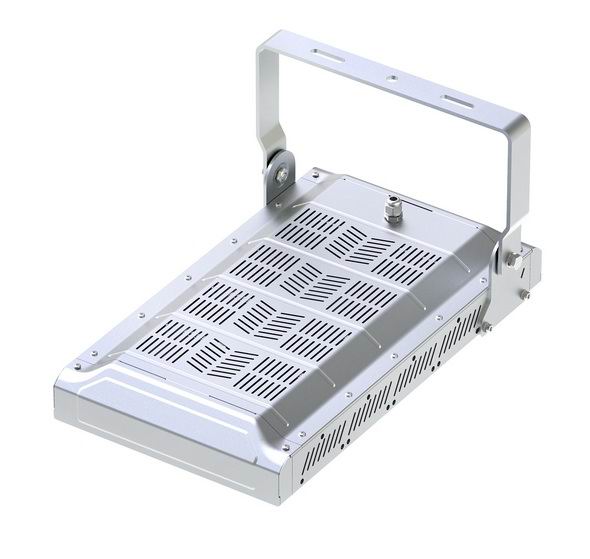

150-250W LED Flood Light Heat Sink-SD150-250FG-5

Adaptive Parameter

unit: mm

SD150-250FG-5

SD120-200FG-4

Parameters

Power(W)150
Voltage(V)36
Current(mA)3000
CHIP Model3535/1LA5
LED QTY(pcs)120
Any way10P12S
PCB size(mm)260﹡61﹡1.5
Power(W)150250
Current(mA)32005500
Voltage(V)4242
CHIP Model2835/30302835/3030
LED QTY(pcs)280280
Any way20P14S20P14S
PCB size(mm)260﹡61﹡1.5260﹡61﹡1.5

Brief Description of 150-250W LED Flood Light Heat Sink-SD150-250FG-5

DESIGN A LAMP

ILLUMINATE A CITY

MULTIPLE APPLICATIONS, FG SERIES FLOOD LIGHT HEATSINK

30W-210W/50W-350W available, total 7 models optional, applied for street lighting, Projection lighting, city decorative lighting, construction lighting, advertising lighting

PRODUCT DISPLAY

Design Innovation, Cost-Performance

Stamping process, high production efficiency guarantees shortest lead time, good heat dissipation performance, lighting weight, easy assembly and cost effective

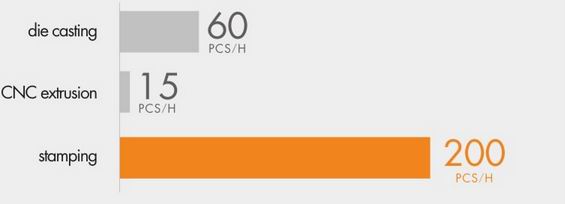

Comparison Chart of Production Efficiency

Comparison Chart of Heat Conductivity Coefficient

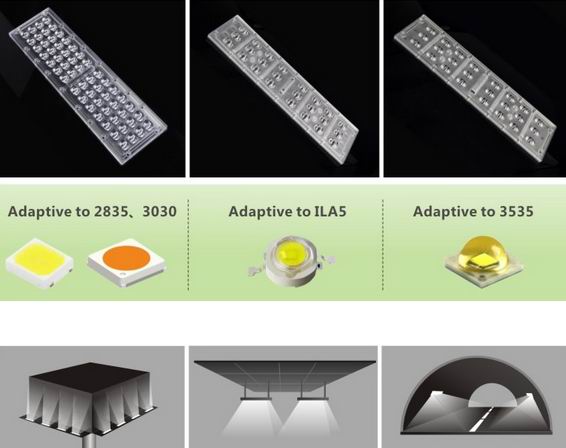

Configured with a Multitude of Lens

Equipped with 56 pcs and 24 pcs optical quality PC lens, featuring UV filter, excellent weather resistance against yellowing and even light distribution, the product is compatible with various LED lights such as 2835,3030,ILA5 and 3535. The lens has asymmetric beam anglesL150*75°,90°*50°,75°*30° and symmetrical beam anglesL15°,25°,40°,60°,90° available. It can be used as tunnel lamp, high-bay lamps, spotlights and advertising lamps.

Prospective design, performance excellence

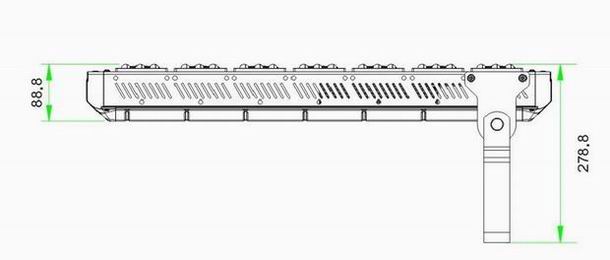

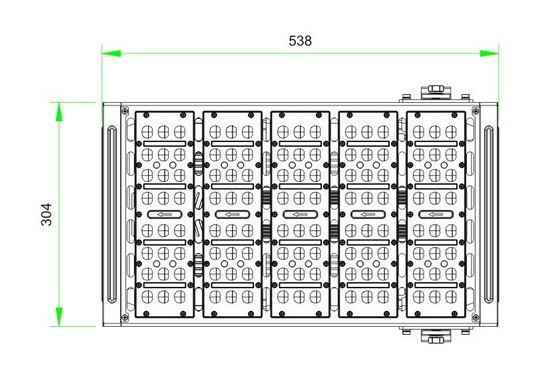

(Following are abbreviated drawing, different watts, same functions)

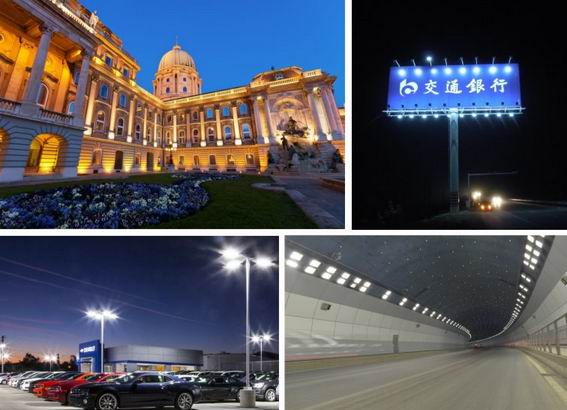

Application

Applied for street lighting, projection lighting, city decorative lighting, construction lighting, ads. Lighting.
