150W LED Bay Light Heat Sink-SD150D

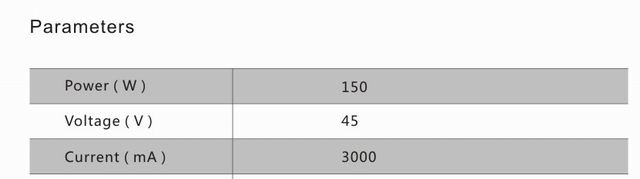

Image: 150W LED Bay Light Heat Sink-SD150D Parameters

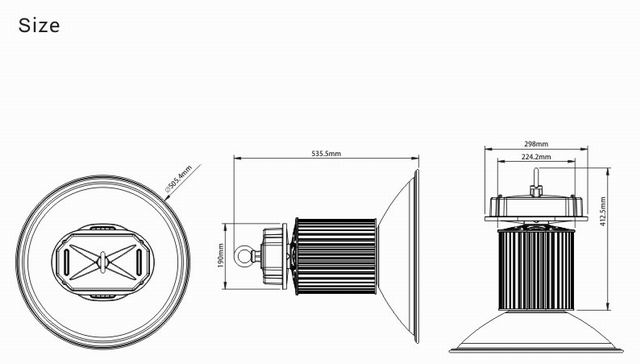

Image: 150W LED Bay Light Heat Sink-SD150D Size
Brief Description of 150W LED Bay Light Heat sink:
- Heat pipe-Riveting and massive fins cooling technology
By using the ?6mm heatpipe, the heat generated by the lighting quickly transfers to the
cooling module of massive radiation fins, efficiently reduce the temperature of the LED
lighting chips and extend the lifespan of the lighting source.
- 3-D heat dissipation
Professional heat dissipation structure design. Modular heatsink with perfect structure and inside airflow channels maxim the 3D heat dissipation.
- Compressed Fins Technology
Creative Compressed Fins Technology: rivet the heatpipe to heatsink body
closely, minimize the heat resistance, greatly improve the heat dissipation effect, and it
is much lighter compared with similar products.
- Patented HDT technology
High efficient heatpipes contact the heat source directly, maxima the performance of the heatpipe to reach the cooling effect.
- Optional beam angle reflector
Flake designed high-purity aluminum reflector angle scales with PC cover options to meetthe professional light distribution, to adapt to different situations. There are 60°,90°,110° beam angle options for the flake designed reflector. And there arealso two optionsfor the reflector material, high-purity aluminum or PC. Professional optic designed, the
reflector is suitable for different situations.
- Both build-in power driver Design
Separated build-out power driver design is good at thermal dissipation, which improves the efficiency, stability and longevity of the driver.

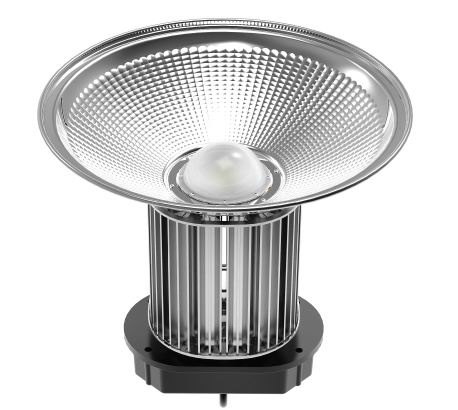

Image: 150W LED Bay Light Heat Sink-SD150D 1
Image: 150W LED Bay Light Heat Sink-SD150D 2
