» Home > LED Diodes > 210/350W LED Street Light Heat Sink-SD210/350B

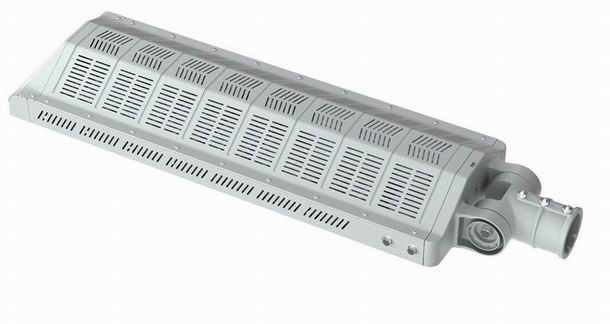

210/350W LED Street Light Heat Sink-SD210/350B

The new generation LED street lamp suite

The whole lamp with the powder coating is brighter without fading and corrosion configurable SD street lamp adapter, 120°Angle adjustment, Anti typhoon 17, Waterproof : IP 67

210 or 350W LED Street Light Heat Sink-SD210B or SD350B
210 or 350W LED Street Light Heat Sink-SD210B or SD350B

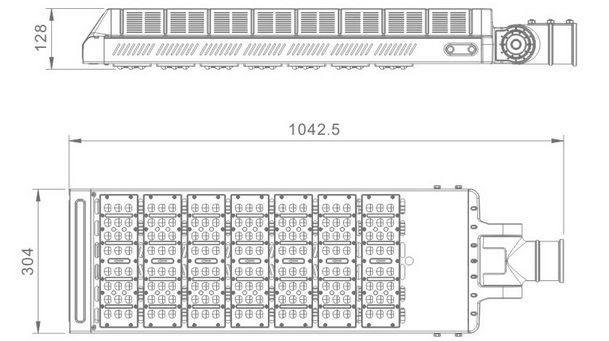

Size:

210 or 350W LED Street Light Heat Sink-SD210B or SD350B

Parameters

Power(W)210
Voltage(V)36
Current(mA)5600
CHIP ModelXPE/1LA5
LED QTY(pcs)168
Any way14P12S
PCB size(mm)Φ260﹡61﹡1.5
Power(W)210350
Voltage(V)4242
Current(mA)44807700
CHIP Model2835/30302835/3030
LED QTY(pcs)392392
Any way28P14S28P14S
PCB size(mm)Φ260﹡61﹡1.5Φ260﹡61﹡1.5

Brief Description of 210/350W LED Street Light Heat Sink-SD210/350B

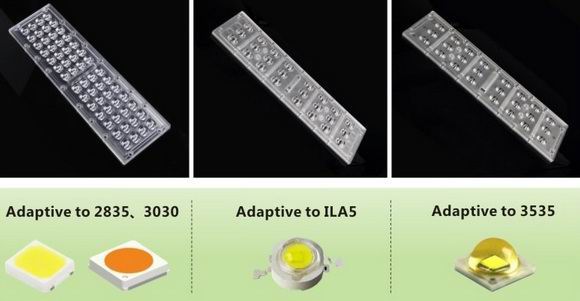

Configured with a multitude of lens

LED Street Light Heat Sink

Design Innovation, Cost-Performance

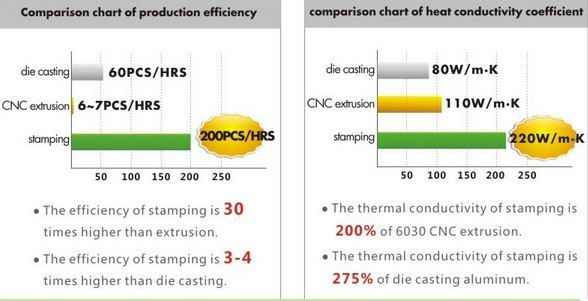

Manufactured with the process of pressing, the production efficiency is high, the heat dissipation performance of materials is fine, and the weight is generally 1 time lighter than that of common products. It’s easy to install, boasting a higher cost performance.

LED Street Light Heat Sink

With an adjustable angle range of 180 °,the light can move as you want.

Supporting to adjust the lamp arm with 180°,changing the angle of the light at will.(The following figure is only schematic, different wattages, principle and function of the same.)

LED Street Light Heat Sink

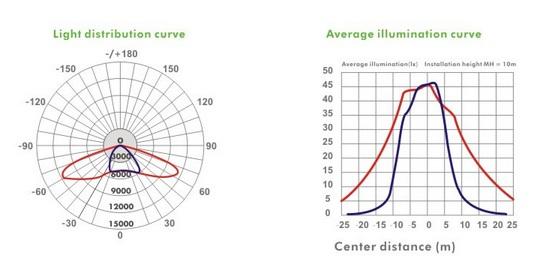

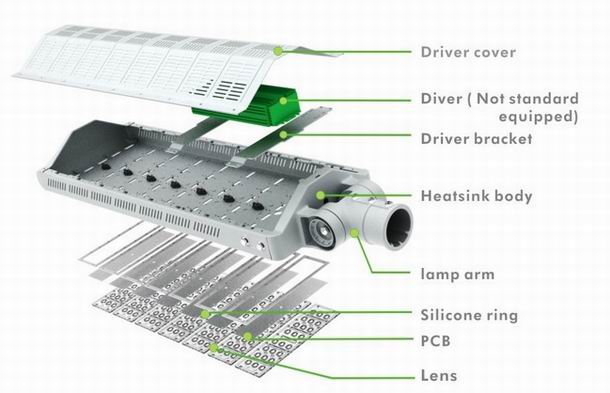

Prospective design, performance excellence

(The following figure is only schematic, different wattages, principle and function of the same)

LED Street Light Heat Sink
Waterproof: IP67
With the silicone ring, the water-proof can be made to IP67, totally prevent the dust and water from rainstorm.
Anti typhoon 17
Through wind tunnel test professional, 65 m/s at the highest wind speed,i.e. 17level of the typhoon, no deformation,loosening. Firmly

Multi power selection

SD3B series includes 30w, 60w, 90w, 120w, 150w, 180w, 210w,a total of 7 heat radiating Suite product portfolio, According to the use of premises need to select appropriate heat radiating suite.

LED Street Light Heat Sink

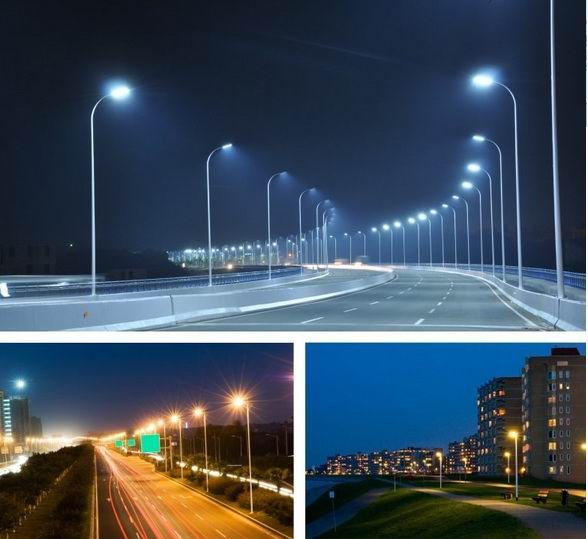

Application

Widely used in arterial roads, highways, elevated road, city streets, bridges, sidewalks road lighting, and the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.

LED Street Light Heat Sink

LED heatsink+ lighting engineering solution provider

210 or 350W LED Street Light Heat Sink-SD210B or SD350B

Professional service superior performance

Chip temperature test
