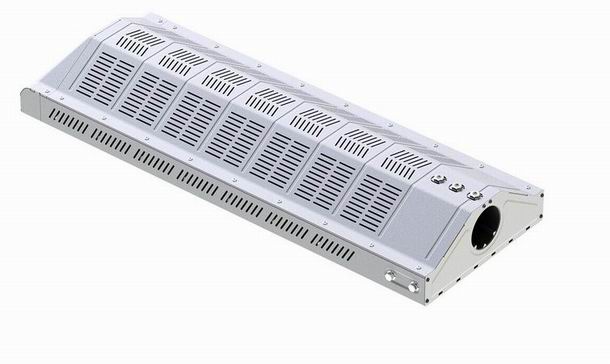

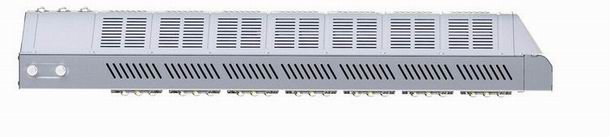

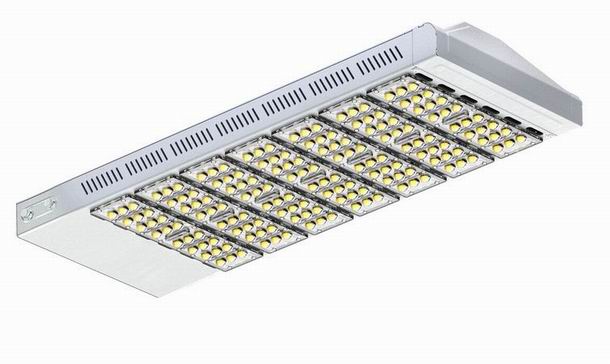

210/350W LED Street Light Heat Sink-SD210/350C

The new generation LED street lamp suite

The whole lamp with the powder coating is brighter without fading and corrosion configurable SD street lamp adapter, 120° Angle adjustment, Anti typhoon 17, Waterproof : IP 67.

210-350W LED Street Light Heat Sink-SD210-350C
210-350W LED Street Light Heat Sink-SD210-350C
210-350W LED Street Light Heat Sink-SD210-350C

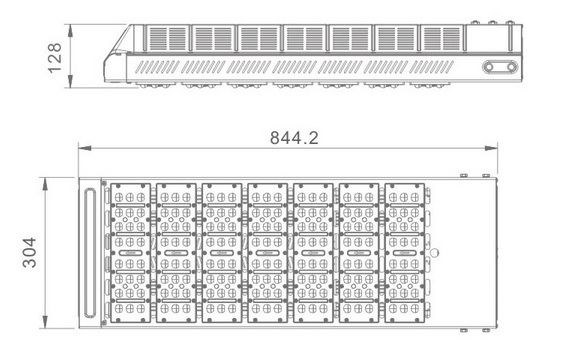

Size:

210-350W LED Street Light Heat Sink-SD210-350C

Parameters

Power(W)210
Voltage(V)36
Current(mA)5600
CHIP ModelXPE/1LA5
LED QTY(pcs)168
Any way14P12S
PCB size(mm)Φ260﹡61﹡1.5
Power(W)210350
Voltage(V)4242
Current(mA)44807700
CHIP Model2835/30302835/3030
LED QTY(pcs)15681568
Any way30P14S30P14S
PCB size(mm)Φ260﹡61﹡1.5Φ260﹡61﹡1.5

Brief Description of 210/350W LED Street Light Heat Sink-SD210/350C

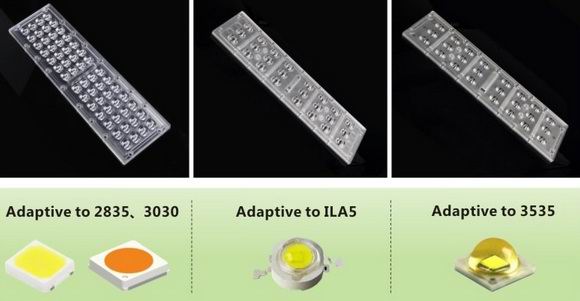

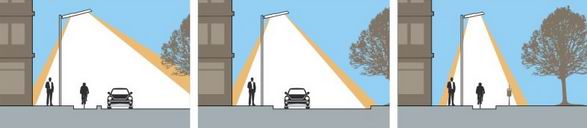

Configured with a multitude of lens

210-350W LED Street Light Heat Sink-SD210-350C

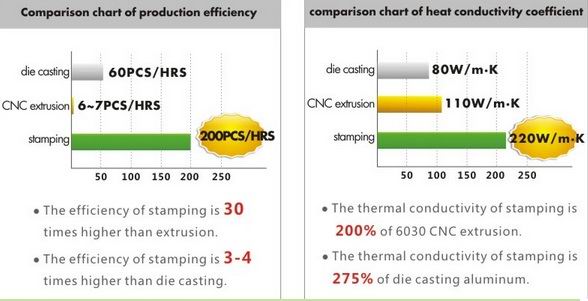

Design Innovation, Cost-Performance

Manufactured with the process of pressing, the production efficiency is high, the heat dissipation performance of materials is fine, and the weight is generally 1 time lighter than that of common products. It’s easy to install, boasting a higher cost performance.

210-350W LED Street Light Heat Sink-SD210-350C

Prospective design, performance excellence

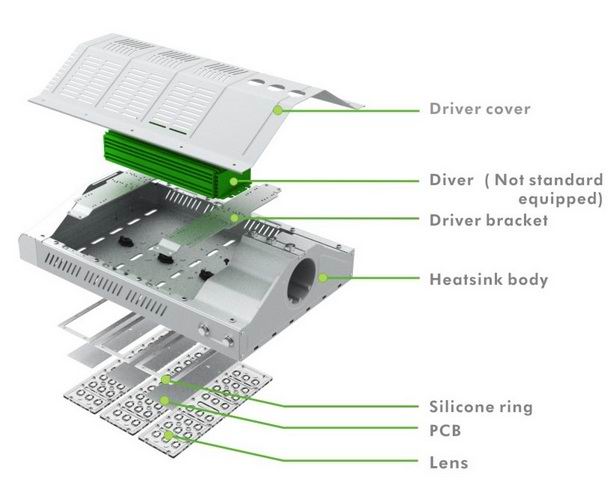

(The following figure is only schematic, different wattages, principle and function of the same)

210-350W LED Street Light Heat Sink-SD210-350C

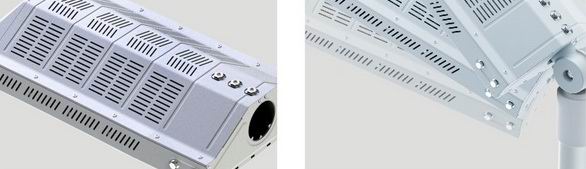

Corrosion resistance
The whole lamp with the powder coating is without fading and corrosion, suitable for harsh outdoor environment.
Configurable Street lamp adapter
SD streep lamp adapter,with clear scale, 120° angle adjustable
210-350W LED Street Light Heat Sink-SD210-350C

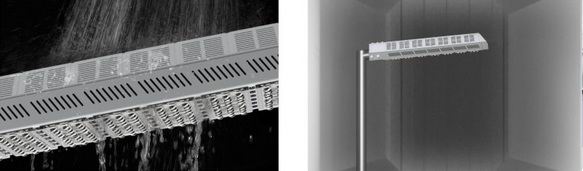

Waterproof: IP67
With the silicone ring, the water-proof can be made to IP67, totally prevent the dust and water from rainstorm.
Anti typhoon 17
Through wind tunnel test professional, 65 m/s at the highest wind speed,i.e. 17level of the typhoon, no deformation,loosening. Firmly

Multi power selection

SD3C series includes 30/50w-210/350w, a total of 7 heat radiating Suite product portfolio, According to the use of premises need to select appropriate heat radiating suite.

210-350W LED Street Light Heat Sink-SD210-350C

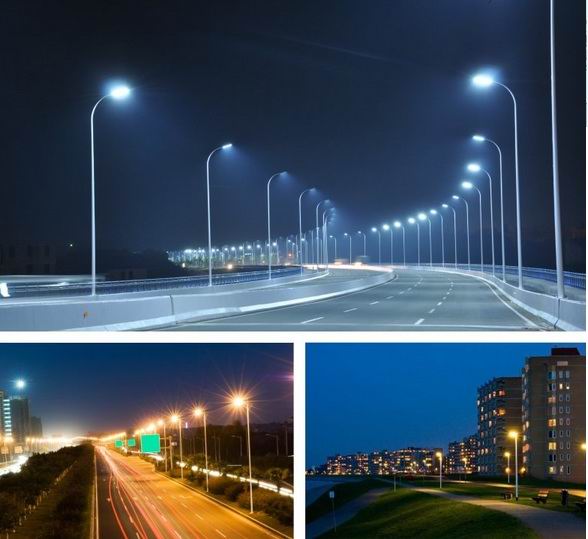

Application

Widely used in arterial roads, highways, elevated road, city streets, bridges, sidewalks road lighting, and the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.

210-350W LED Street Light Heat Sink-SD210-350C

LED heatsink+ lighting engineering solution provider

210-350W LED Street Light Heat Sink-SD210-350C

Professional service superior performance

210-350W LED Street Light Heat Sink-SD210-350C

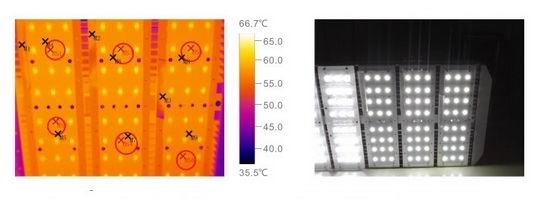

Chip temperature test

210-350W LED Street Light Heat Sink-SD210-350C
