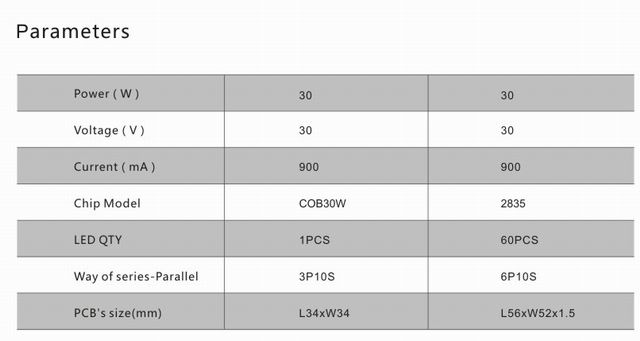

Image: 30W LED Flood Light Heat Sink-SD30A Parameters

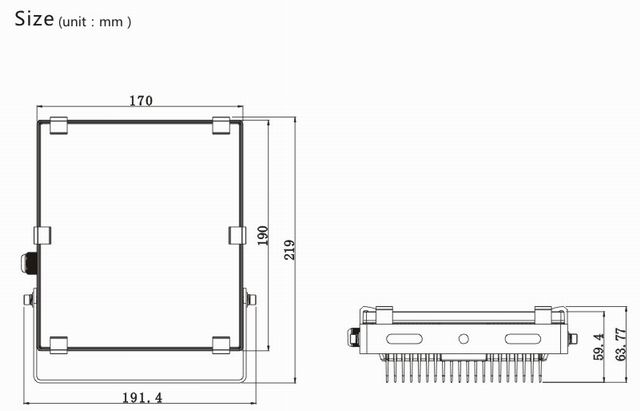

Image: 30W LED Flood Light Heat Sink-SD30A Size
The most efficient flood light heat-sink for the new generation of green led lighting
LED has proved to be the trend of next generation lighting for it’s environment friendly, energy-saving, light efficiency, reliability, SD’s innovative LED heatsinks with the powerful heat dissipation capability and reliability greatly extend the LED lightings lifespan, thus remarkable reduce the expense of lighting operation and maintenance.

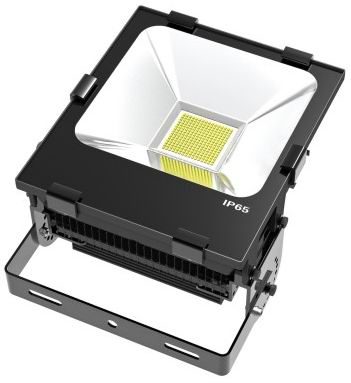

Image: 30W LED Flood Light Heat Sink-SD30A 6
Brief Description of 30W LED Flood Light Heat Sink:
Materials And Process
- By using the most powerful and efficient flood light heatsink, the completed LED light can work up to 50000 hours, save up to 80% energy, have better lighting characteristics than that of traditional metal halide lamp of 60w;
- Riveting the heatpipe to the heatsink, rapidly transfer the heat of the LED chips to the massive fins;
- Protection rate:IP65.
- Tempered glass panel to protect the lighting source, the transparent rate up to 93%;
- 1060 aluminium heatsink with “zipped-fins” technology, optimized airflow duct inside the housing;
- The entire housing coated by electrophoretic paint, excellent corrosion resistance;
- Stainless steel screws and parts.
WE CAN DO CUSTOMIZING-MORE OPTIONS AVAILABLE FOR YOU

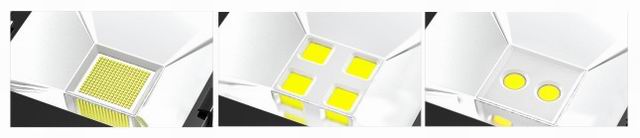

The housing compatible for different kinds of LED chips and brackets
Most of the mainstream manufacturers’led chips and their chip-scale package are compatible to the structure of the housing, we can also customize the installation structure accord to your chip-package’s size (square, circle etc.)

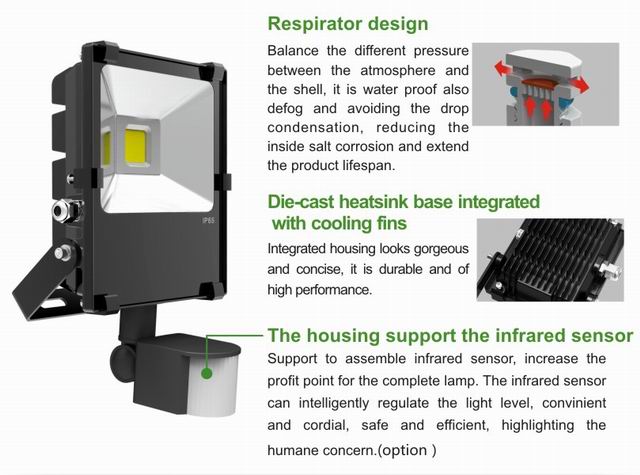

Image: 30W LED Flood Light Heat Sink-SD30A 9

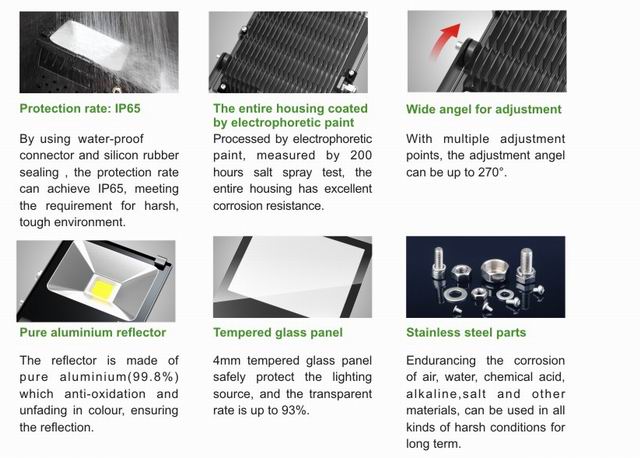

EXCELLENT PERFORMANCE STRONG PROTECTION
Image: 30W LED Flood Light Heat Sink-SD30A 4
Image: 30W LED Flood Light Heat Sink-SD30A 8

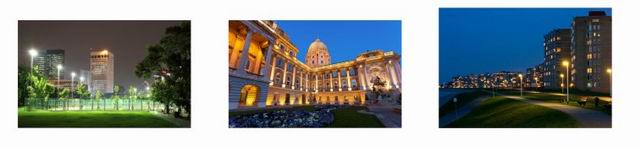

LED flood light is widely used in shopping center , exhibition hall, parking lot, stadium, gymnasia, billboard, park, statue, government lighting decoration project, landmark or building, public square and passage, building connecting passage, and other indoor or outdoor light applications.
Image: 30W LED Flood Light Heat Sink-SD30A 5
Elegant technology taken in kind ,feeling the perfect texture, and experiencing our whole core service

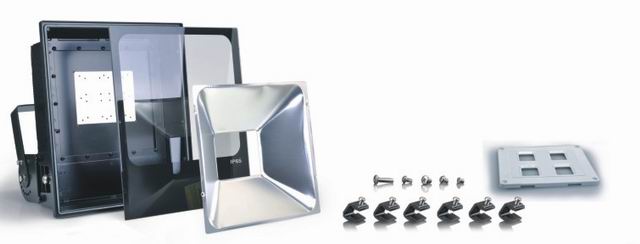

(The housing mainly includes heatsink body, tempered glass, reflector, light source bracket; without light source, driver and PCB.)
Image: 30W LED Flood Light Heat Sink-SD30A 7
- Riveting the heatpipe to the heatsink, rapidly transfer the heat of the
- Easy to install
- Easy to install and convenient for maintenance.
- Waterproof Grade:IP65
- Prevent dusts and water
- Professional design
- Fashionable texture, focusing on heatsink design, and having patent protection.
