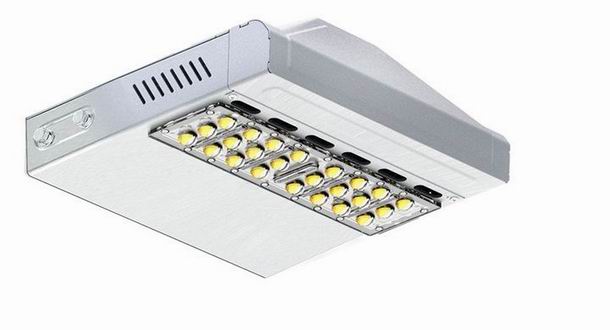

30W LED Street Light Heat Sink-SD30C
The new generation LED street lamp suite
The whole lamp with the powder coating is brighter without fading and corrosion configurable SD street lamp adapter, 120° Angle adjustment, Anti typhoon 17, Waterproof : IP 67.

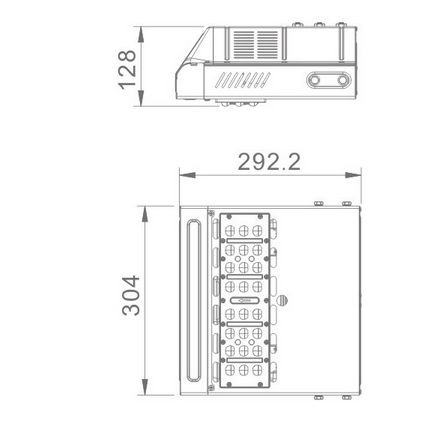

Size:
Parameters
| Power(W) | 30 |
| Voltage(V) | 36 |
| Current(mA) | 800 |
| CHIP Model | XPS/1LA5 |
| LED QTY(pcs) | 24 |
| Any way | 2P12S |
| PCB size(mm) | Φ260﹡61﹡1.5 |
| Power(W) | 30 | 50 |
| Voltage(V) | 42 | 42 |
| Current(mA) | 640 | 1100 |
| CHIP Model | 2835/3030 | 2835/3030 |
| LED QTY(pcs) | 56 | 56 |
| Any way | 4P14S | 4P14S |
| PCB size(mm) | Φ260﹡61﹡1.5 | Φ260﹡61﹡1.5 |
Brief Description of 30W LED Street Light Heat Sink-SD30C
Configured with a multitude of lens
Design Innovation, Cost-Performance
Manufactured with the process of pressing, the production efficiency is high, the heat dissipation performance of materials is fine, and the weight is generally 1 time lighter than that of common products. It’s easy to install, boasting a higher cost performance.
Prospective design, performance excellence

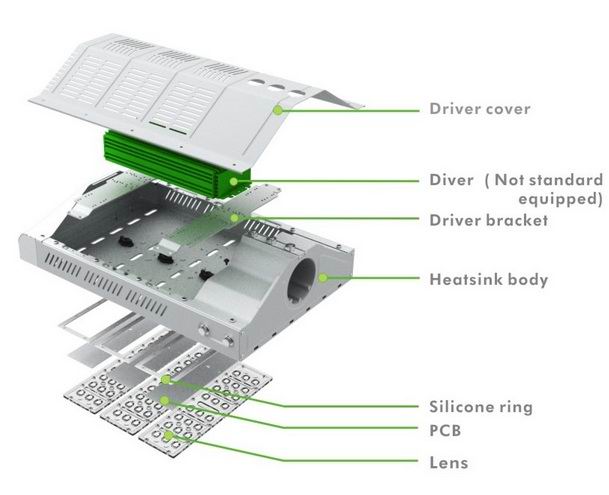

(The following figure is only schematic, different wattages, principle and function of the same)
| Corrosion resistance The whole lamp with the powder coating is without fading and corrosion, suitable for harsh outdoor environment. |
Configurable Street lamp adapter SD streep lamp adapter,with clear scale, 120° angle adjustable |
| Waterproof: IP67 With the silicone ring, the water-proof can be made to IP67, totally prevent the dust and water from rainstorm. |
Anti typhoon 17 Through wind tunnel test professional, 65 m/s at the highest wind speed,i.e. 17level of the typhoon, no deformation,loosening. Firmly |
Multi power selection
SD3C series includes 30/50w-210/350w, a total of 7 heat radiating Suite product portfolio, According to the use of premises need to select appropriate heat radiating suite.
Application
Widely used in arterial roads, highways, elevated road, city streets, bridges, sidewalks road lighting, and the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.
LED heatsink+ lighting engineering solution provider
Professional service superior performance

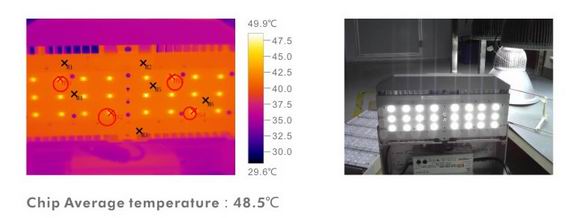

Chip temperature test
