3W LED Down Light Heat Sink-STDA3
Brief Description of 3W LED Down Light Heat Sink-STDA3
Simple yet stylish, economical yet excellent functional; fine selection of quality material; available at 2.5-inch, 3-inch, 4-inch, 6-inch, 8-inch.
Widely used in various applications such as for residential, office commercial, hotel… etc.
Photo Display:
STDA3
Power Box Edition
Press Box Version
Pressure Line Deduction Edition
Design Innovation, Cost-performance
Stamping process manufacturing,high production efficiency, short leadtime, good thermal performance, light weight for easy installation, more cost-effective.
Fine Selection of Quality Material
LED Heatsink+Lighting Engineering Solution Provider

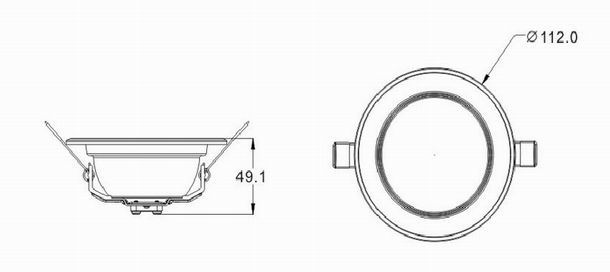

Size:
Parameters
| Power(W) | 7 | 9 |
| Voltage(V) | 27 | 27 |
| Current(mA) | 300 | 300 |
| CHIP Model | 2835 | 2835 |
| LED QTY(pcs) | 35 | 45 |
| Way of Series-Parallel | 5P 7S | 5P 9S |
| PCB size(mm) | Φ48﹡1.0 | Φ48﹡1.0 |
Application Areas
Widely used in various applications such as for residential office commercial, hotel…etc.
Home Lighting Commercial Lighting
