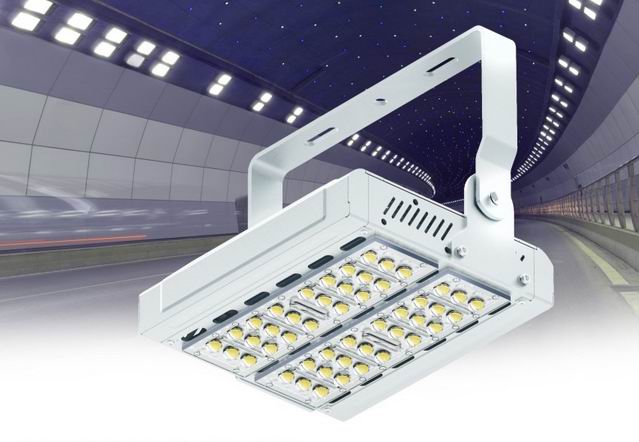

60-100W LED Flood Light Heat Sink-SD60-100FG-2

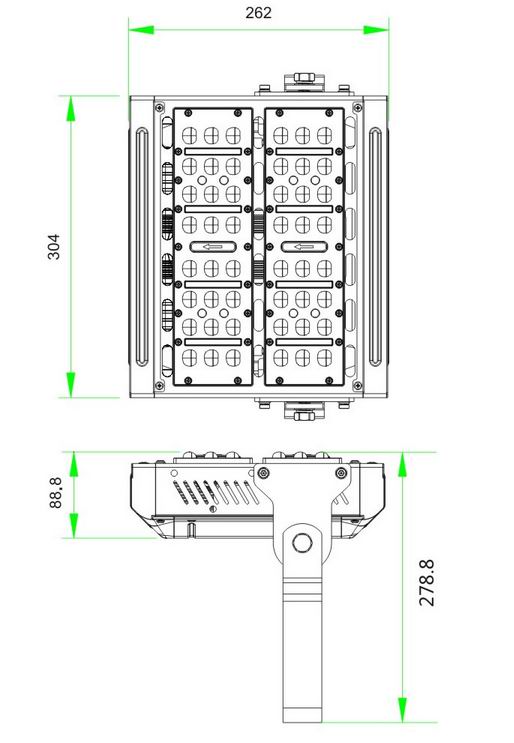

Adaptive Parameter

unit: mm

SD60-100FG-2

Parameters

Power(W)	60
Voltage(V)	36
Current(mA)	1600
CHIP Model	3535/1LA5
LED QTY(pcs)	48
Any way	4P12S
PCB size(mm)	260﹡61﹡1.5

Power(W)	60	100
Current(mA)	1280	2000
Voltage(V)	42	42
CHIP Model	2835/3530	2835/3030
LED QTY(pcs)	112	112
Any way	8P14S	8P14S
PCB size(mm)	260﹡61﹡1.5	260﹡61﹡1.5

Brief Description of 60-100W LED Flood Light Heat Sink-SD60-100FG-2

DESIGN A LAMP

ILLUMINATE A CITY

MULTIPLE APPLICATIONS, FG SERIES FLOOD LIGHT HEATSINK

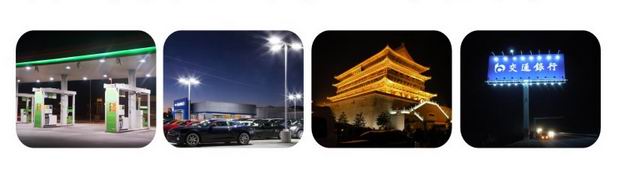

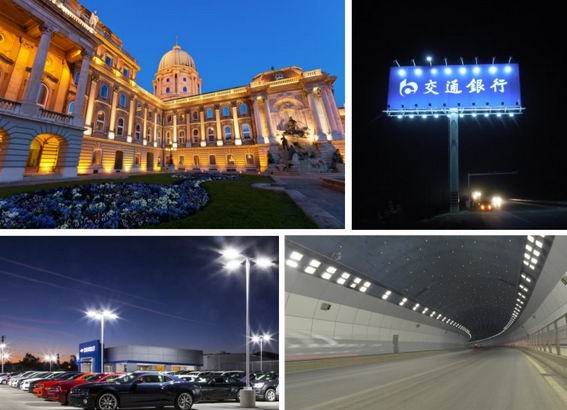

30W-210W/50W-350W available, total 7 models optional, applied for street lighting, Projection lighting, city decorative lighting, construction lighting, advertising lighting.

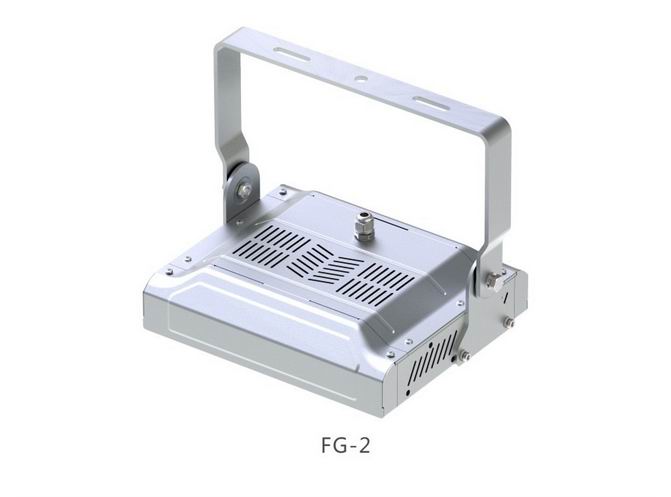

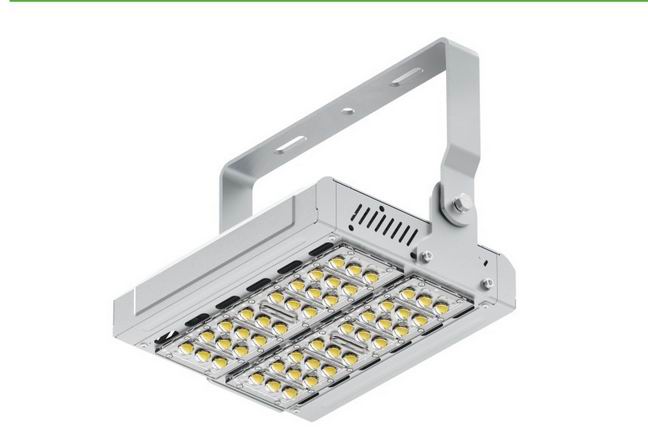

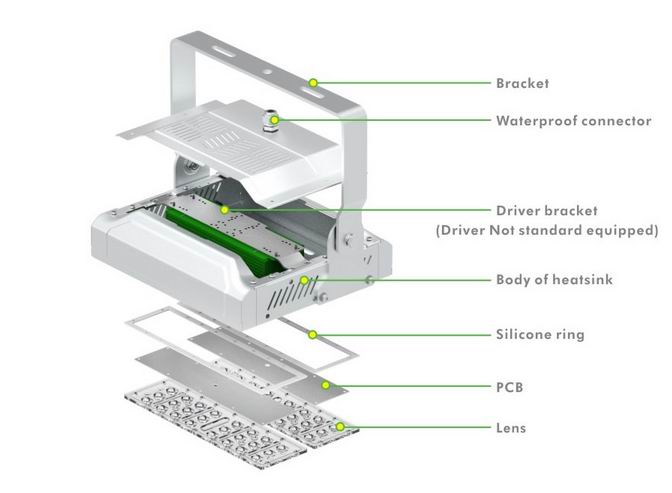

PRODUCT DISPLAY

Design Innovation, Cost-Performance

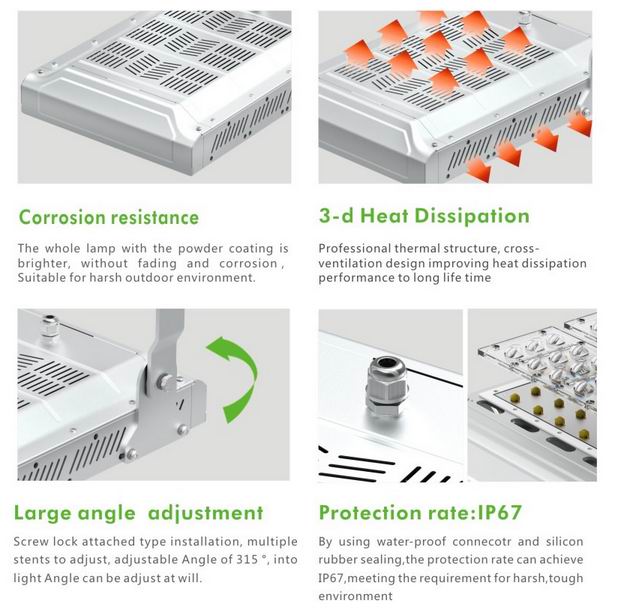

Stamping process, high production efficiency guarantees shortest lead time, good heat dissipation performance, lighting weight, easy assembly and cost effective

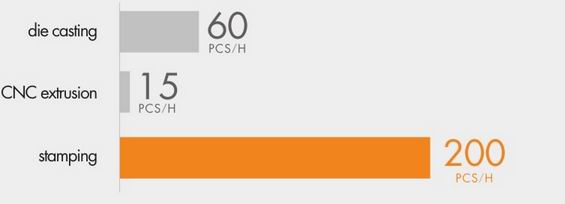

Comparison Chart of Production Efficiency.

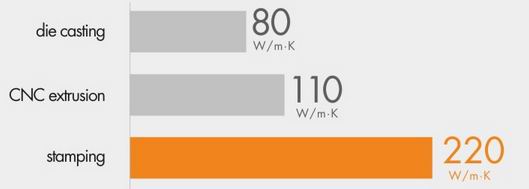

Comparison Chart of Heat Conductivity Coefficient

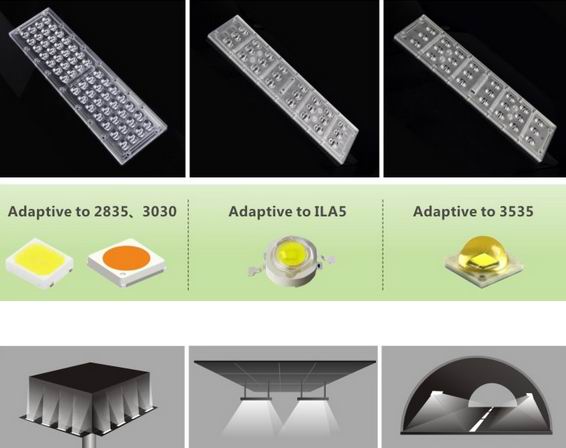

Configured with a Multitude of Lens

Equipped with 56 pcs and 24 pcs optical quality PC lens, featuring UV filter, excellent weather resistance against yellowing and even light distribution, the product is compatible with various LED lights such as 2835,3030,ILA5 and 3535. The lens has asymmetric beam anglesL150*75°,90°*50°，75°*30° and symmetrical beam anglesL15°,25°,40°,60°,90°available. It can be used as tunnel lamp, high-bay lamps, spotlights and advertising lamps.
