60W LED Bay Light Heat Sink-SD60G

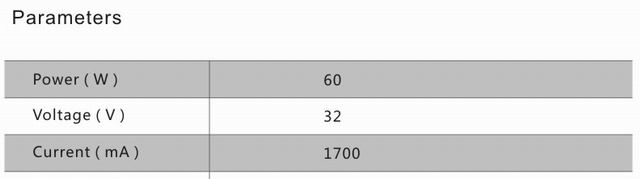

Image: 60W LED Bay Light Heat Sink-SD60G Parameters

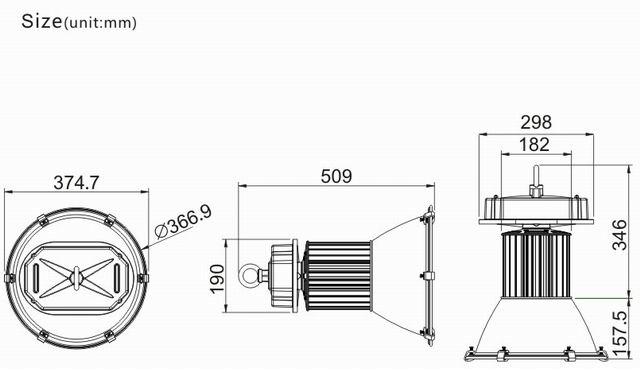

Image: 60W LED Bay Light Heat Sink-SD60G Size

Brief Description of 60W LED Bay Light Heat sink:

• 3-D heat dissipation
  Professional heat dissipation structure design. Modular heatsink with perfect structure and inside airflow channels maxim the 3D heat dissipation.
• Compressed Fins Technology
  Creative Compressed Fins Technology: rivet the heatpipe to heatsink body closely, minimize the heat resistance, greatly improve the heat dissipation effect, and it is much lighter compared with similar products.
• Patented HDT technology
  High efficient heatpipes contact the heat source directly, maxima the performance of the heatpipe to reach the cooling effect.
• Optional beam angle reflector
  Flake designed high-purity aluminum reflector angle scales , to adapt to different situations.
  There are 25°,45°,60°,90°,100°,beam angle options for the flake designed reflector.
  Professional optic designed, the reflector is suitable for different situations.

• Both build-in power driver Design
  Separated build-out power driver design is good at thermal dissipation, which improves the efficiency, stability and longevity of the driver.

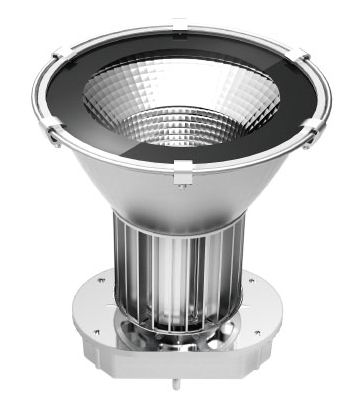

Image: 60W LED Bay Light Heat Sink-SD60G 1

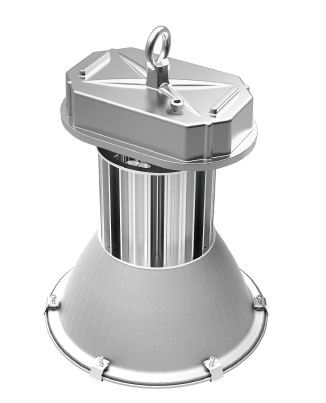

Image: 60W LED Bay Light Heat Sink-SD60G 2
