» home > led diodes > 800w high power led light source

get paid for online tutoring

model no. color wl(nm)/cct(k)chip quantitychip brand input voltage(v)input current (ma)
sd-p800r-800w01 red 620 - 660nm 29 * 28 = 812epileds 63 - 70v 9800ma
sd-p800y-800w01 yellow585 - 595nm 29 * 28 = 812epileds 63 - 70v 9800ma
sd-p800g-800w01 green 520 - 530nm 29 * 28 = 812epistar, bridgelux, cree95 - 105v 9800ma
sd-p800b-800w01 blue 460 - 470nm 29 * 28 = 812epistar, bridgelux, cree95 - 105v 9800ma
sd-p800w-800w01 white 6000 - 7000k29 * 28 = 812epistar, bridgelux, cree95 - 105v 9800ma
sd-p800ww-800w01 white 2700 - 3300k29 * 28 = 812epistar, bridgelux, cree95 - 105v 9800ma
  • absolute maximum ratings at ta=25°c
  • viewing angle(°): 120±5
  • cri: 70-95 ra are available
  • circuit structure: 29 * 28
  • pcb board material: copper board
  • gold thread spec: 1.2mil au
  • esd sensitivity(v): 4000
  • storage temperature(°c): -35 ~ +100
  • operating temperature(°c): 350 for 5 seconds max
  • lead soldering temperature(°c): -35 ~ +80

get paid for online tutoring

  • super cost saving 50%
  • ultimate stability
  • super fast heat transfer
  • superior power-density
  • up to 140lm/w
  • good quality& high cost performance
  • environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
  • idea you give, customized product we supply , contact us now

get paid for online tutoring

  • three years quality assurance
  • high power led light commitment (substrate temperature <55℃): 1000h < 3%; 3000h < 5%; 10000h < 10%

get paid for online tutoring

  • long life: product life of up to 50,000 hours
  • nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control
  • a large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light
  • environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation.
  • color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary colors to form a variety of colors, can realize full-color gradients, and other color effects.
  • less power consumption: light effects to 60 lm/w of the led power consumption than equivalent incandescent brightness reduced by 80%;

get paid for online tutoring

  • high bay light, stage light
  • flood light,spot light for ourdoor
  • growing light for plant,vegetable,flower

get paid for online tutoring

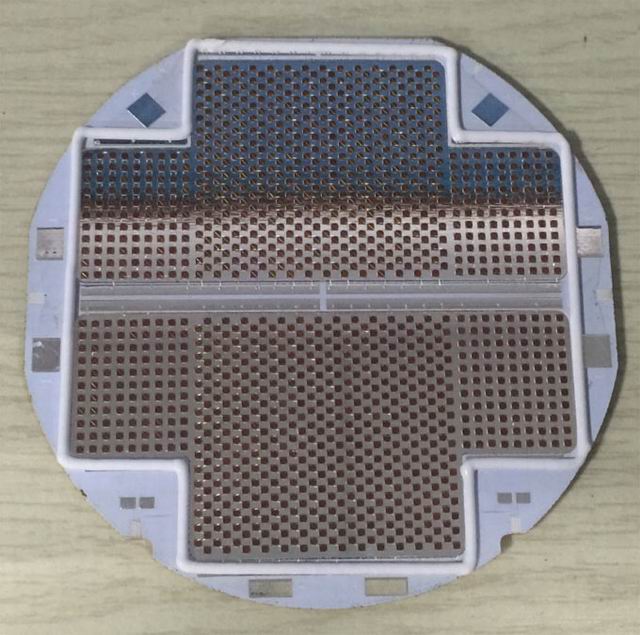

products pictures of 800w super high power led light source

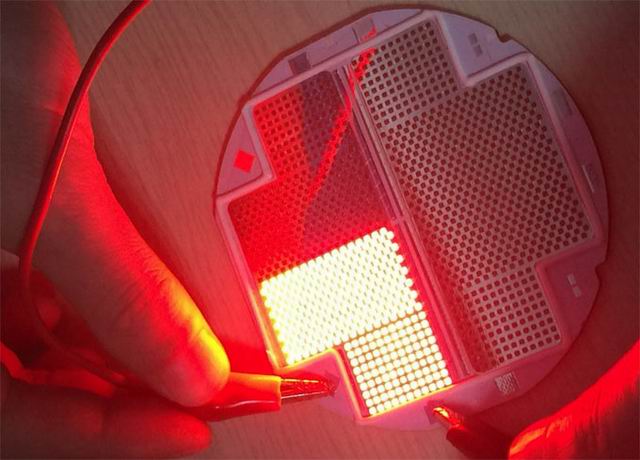

products pictures of 800w super high power led light source
