High Power Led 0.4w, 0.5W Series

0.5W LED

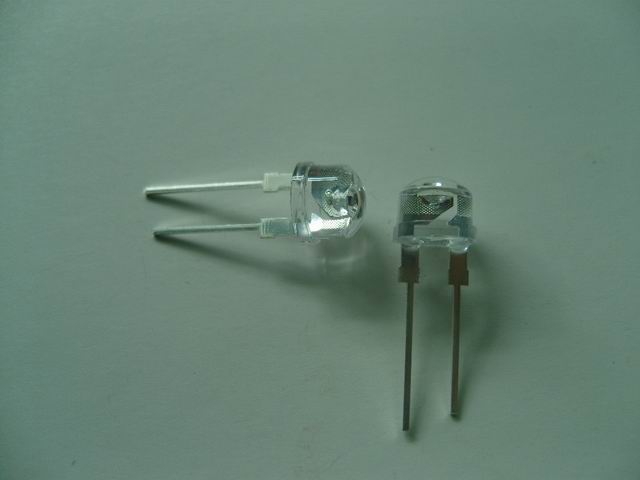

Picture: 0.5W LED

1. High Power Led: SDP05-0.4W Series

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP05R1410010 Red 120 0.30 620 2.00 10 Min
625 2.2-2.4 15 Avg
630 2.60 20 Max
SDP05Y2410010 Yellow 120 0.30 585 2.00 10 Min
590 2.2-2.4 15 Avg
595 2.60 20 Max
SDP05B3410005 Blue 120 0.40 460 3.00 4 Min
465 3.3-3.6 6 Avg
470 3.80 10 Max
SDP05G6410010 Green 120 0.40 520 3.00 12 Min
525 3.3-3.6 16 Avg
530 3.80 25 Max
SDP05W6410020 White 120 0.40 6000 3.00 15 Min
6500 3.3-3.6 20 Avg
7000 3.80 25 Max
SDP05W3410010 Warm White 120 0.40 2700 3.00 10 Min
3000 3.3-3.6 15 Avg
3300 3.80 20 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 105±5 100±5
Peak Pulsed Forward Current(mA)1/10s 300 300
Reverse Voltage(V) ≥8 ≥5
Reverse Current(uA) ≤10 ≤20
ESD Sensitivity (V) 2000 2000
Storage Temperature(°C) ﹣35～﹢60 ﹣35～﹢60
Operating Temperature (°C) ﹣35～﹢60 ﹣35～﹢60
Lead Soldering Temperature (°C) 260 for 5 seconds Max 260 for 5 seconds Max

2. High Power Led: SDP81-0.5W Series

High Power Led 0.4w, 0.5W Series: SDP81-0.5W Series

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP81R1210020 Red 150 0.40 620 2.00 15 Min
622-626 2.2-2.4 20 Avg
630 2.50 30 Max
SDP81Y2210020 Yellow 150 0.40 585 2.00 15 Min
589-592 2.2-2.4 20 Avg
595 2.50 30 Max
SDP81B3210000 Blue 120 0.45 460 3.00 4 Min
464-467 3.2-3.4 8 Avg
470 3.70 12 Max
SDP81G6210020 Green 120 0.45 520 3.00 15 Min
522-525 3.2-3.4 20 Avg
530 3.70 30 Max
SDP81W6210020 White 120 0.45 6000 3.00 20 Min
6500 3.2-3.4 25 Avg
7000 3.70 35 Max
SDP81W3210010 Warm White 120 0.45 2700 3.00 15 Min
3000 3.2-3.4 20 Avg
3300 3.70 25 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 115±5 115±5
Peak Pulsed Forward Current(mA)1/10s 300 300
Reverse Voltage(V) ≥8 ≥5
Reverse Current(uA) ≤10 ≤10
ESD Sensitivity (V) 2000 2000
Storage Temperature(°C) ﹣40～﹢100 ﹣40～﹢100
Operating Temperature (°C) ﹣30～﹢55 ﹣40～﹢55
Lead Soldering Temperature (°C) 260 for 5 seconds Max 260 for 5 seconds Max

3. High Power Led: SDP90-0.5W Series

High Power Led 0.4w, 0.5W Series: SDP90-0.5W Series

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP90R1219020 Red 150 0.40 620 2.00 15 Min
622-626 2.2-2.4 20 Avg
630 2.50 30 Max
SDP90Y2219020 Yellow 150 0.40 585 2.00 15 Min
589-592 2.2-2.4 20 Avg
595 2.50 30 Max
SDP90B3219000 Blue 120 0.45 460 3.00 4 Min
464-467 3.2-3.4 8 Avg
470 3.70 12 Max
SDP90G6219020 Green 120 0.45 520 3.00 15 Min
522-525 3.2-3.4 20 Avg
530 3.70 30 Max
SDP90W6219020 White 120 0.45 6000 3.00 15 Min
6500 3.2-3.4 20 Avg
7000 3.70 30 Max
SDP90W3219010 Warm White 120 0.45 2700 3.00 13 Min
3000 3.2-3.4 18 Avg
3300 3.70 25 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 90±5 90±5
Peak Pulsed Forward Current(mA)1/10s 300 300
Reverse Voltage(V) ≥8 ≥5
Reverse Current(uA) ≤10 ≤10
ESD Sensitivity (V) 2000 2000
Storage Temperature(°C) ﹣40～﹢100 ﹣40～﹢100
Operating Temperature (°C) ﹣30～﹢55 ﹣40～﹢55
Lead Soldering Temperature (°C) 260 for 5 seconds Max 260 for 5 seconds Max

4. High Power Led: SDP80-0.5W Series

High Power Led 0.4w, 0.5W Series: SDP80-0.5W Series

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP80R1212020 Red 150 0.40 620 2.00 15 Min
622-626 2.2-2.4 20 Avg
630 2.50 30 Max
SDP80Y2212020 Yellow 150 0.40 585 2.00 15 Min
589-592 2.2-2.4 20 Avg
595 2.50 30 Max
SDP80B3212000 Blue 120 0.45 460 3.00 4 Min
464-467 3.2-3.4 8 Avg
470 3.70 12 Max
SDP80G6212020 Green 120 0.45 520 3.00 15 Min
522-525 3.2-3.4 20 Avg
530 3.70 30 Max
SDP80W6212020 White 120 0.45 6000 3.00 15 Min
6500 3.2-3.4 20 Avg
7000 3.70 30 Max
SDP80W3212010 Warm White 120 0.45 2700 3.00 13 Min
3000 3.2-3.4 18 Avg
3300 3.70 25 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 28±5 28±5
Peak Pulsed Forward Current(mA)1/10s 300 300
Reverse Voltage(V) ≥8 ≥5
Reverse Current(uA) ≤10 ≤10
ESD Sensitivity (V) 2000 2000
Storage Temperature(°C) ﹣40～﹢100 ﹣40～﹢100
Operating Temperature (°C) ﹣30～﹢55 ﹣40～﹢55
Lead Soldering Temperature (°C) 260 for 5 seconds Max 260 for 5 seconds Max

5. High Power Led: SDP01-0.5W Series

High Power Led 0.4w, 0.5W Series: SDP01-0.5W Series

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP01R1212020 Red 150 0.40 620 2.00 15 Min
622-626 2.2-2.4 20 Avg
630 2.50 30 Max
SDP01Y2212020 Yellow 150 0.40 585 2.00 15 Min
589-592 2.2-2.4 20 Avg
595 2.50 30 Max
SDP01B3212000 Blue 120 0.45 460 3.00 4 Min
464-467 3.2-3.4 8 Avg
470 3.70 12 Max
SDP01G6212020 Green 120 0.45 520 3.00 15 Min
522-525 3.2-3.4 20 Avg
530 3.70 30 Max
SDP01W6212020 White 120 0.45 6000 3.00 20 Min
6500 3.2-3.4 25 Avg
7000 3.70 35 Max
SDP01W3212010 Warm White 120 0.45 2700 3.00 15 Min
3000 3.2-3.4 20 Avg
3300 3.70 25 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 8±5 8±5
Peak Pulsed Forward Current(mA)1/10s 300 300
Reverse Voltage(V) ≥8 ≥5
Reverse Current(uA) ≤10 ≤10
ESD Sensitivity (V) 2000 2000
Storage Temperature(°C) ﹣40～﹢100 ﹣40～﹢100
Operating Temperature (°C) ﹣30～﹢55 ﹣40～﹢55
Lead Soldering Temperature (°C) 260 for 5 seconds Max 260 for 5 seconds Max

6. High Power Led: SDP1A-0.5W Series

High Power Led 0.4w, 0.5W Series: SDP1A-0.5W Series

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP1AR1212020 Red 100 0.45 620 4.50 15 Min
0.60 622-626 6.00 20 Avg
1.20 630 12.00 30 Max
SDP1AY2212020 Yellow 100 0.45 585 4.50 15 Min
0.60 589-592 6.00 20 Avg
1.20 595 12.00 30 Max
SDP1AB3212000 Blue 80 0.36 460 4.50 4 Min
0.48 464-467 6.00 8 Avg
0.96 470 12.00 12 Max
SDP1AG6212020 Green 80 0.36 520 4.50 15 Min
0.48 522-525 6.00 20 Avg
0.96 530 12.00 30 Max
SDP1AW6212020 White 80 0.36 6000 4.50 15 Min
0.48 6500 6.00 20 Avg
0.96 7000 12.00 30 Max
SD1AW3212010 Warm White 80 0.36 2700 4.50 13 Min
0.48 3000 6.00 18 Avg
0.96 3300 12.00 25 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 29±5 29±5
Peak Pulsed Forward Current(mA)1/10s 300 300
Reverse Voltage(V) ≥8 ≥5
Reverse Current(uA) ≤10 ≤10
ESD Sensitivity (V) 2000 2000
Storage Temperature(°C) ﹣40～﹢100 ﹣40～﹢100
Operating Temperature (°C) ﹣30～﹢55 ﹣40～﹢55
Lead Soldering Temperature (°C) 260 for 5 seconds Max 260 for 5 seconds Max
