High Power LED 3W Series

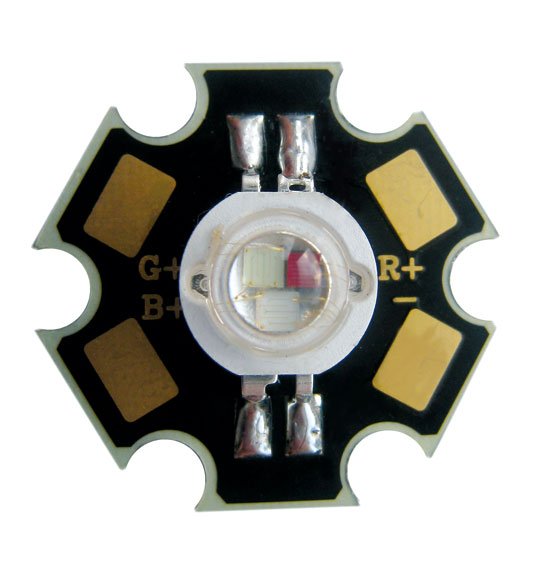

Picture: RGB Power LED 3W Two Legs

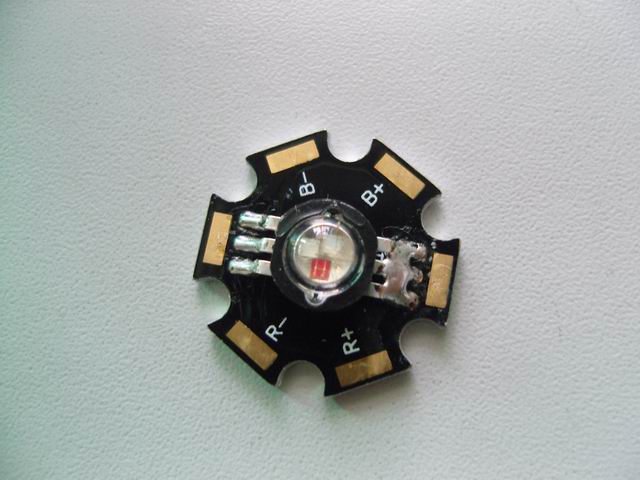

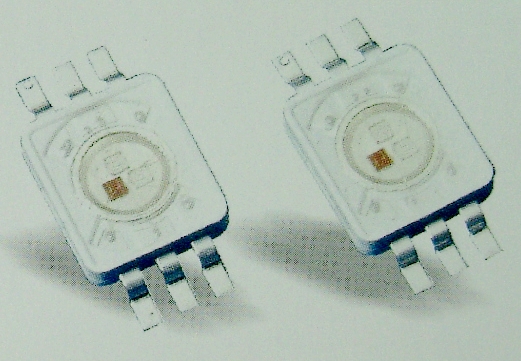

Picture: RGB Power LED 3W Three Legs

1. High Power LED 3W: SDP03-3W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP03R14303100	Red	1200	3.00	620	2.00	90	Min
				622-626	2.4-2.6	100	Avg
				630	2.80	120	Max
SPD03Y24303100	Yellow	1200	3.00	585	2.00	90	Min
				589-592	2.4-2.6	100	Avg
				595	2.80	120	Max
SDP03B3430340	Blue	1000	3.45	460	3.20	30	Min
				464-467	3.4-3.7	45	Avg
				470	4.00	60	Max
SDP03G64303150	Green	1000	3.45	520	3.20	140	Min
				522-525	3.4-3.7	150	Avg
				530	4.00	200	Max
SDP03W64103150	White	750	2.80	6000	3.20	110	Min
				6500	3.4-3.6	150	Avg
				7000	3.80	200	Max
SDP03W34103100	Warm white	750	2.80	2700	3.20	80	Min
				3000	3.4-3.6	100	Avg
				3300	3.80	150	Max
Absolute Maximum Ratings At Ta=25°C
Parameter				Red/Yellow		Blue/Green/White
Viewing Angle(°)				125±5		120±5
Peak Pulsed Forward Current(mA)1/10s				2000		1500
Reverse Voltage(V)				≥20		≥5
Reverse Current(uA)				≤8		≤30
ESD Sensitivity (V)				2000		2000
Storage Temperature(°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Operating Temperature (°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Lead Soldering Temperature (°C)				260 for 5 seconds Max		260 for 5 seconds Max

2. High Power LED 3W: SDP018RGB-3W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP18RGB 4303	Red	400	0.95	620	2.00	30	Min
				625	2.2-2.4	35	Avg
				630	2.60	40	Max
	Green	350	1.18	520	3.00	50	Min
				525	3.3-3.6	55	Avg
				530	3.80	60	Max
	Blue	350	1.18	460	3.00	10	Min
				465	3.3-3.6	15	Avg
				470	3.80	25	Max
SDP18RYG4303	red	400	0.95	620	2.00	30	Min
				625	2.3-2.5	35	Avg
				630	2.60	40	Max
	Green	350	1.18	520	3.00	50	Min
				525	3.3-3.6	55	Avg
				530	3.80	60	Max
	Yellow	400	0.95	585	2.00	30	Min
				590	2.2-2.4	35	Avg
				595	2.60	40	Max
Absolute Maximum Ratings At Ta=25°C
Parameter				Red/Yellow		Blue/Green/White
Viewing Angle(°)				125±5		120±5
Peak Pulsed Forward Current(mA)1/10s				800		800
Reverse Voltage(V)				≥8		≥5
Reverse Current(uA)				≤30		≤50
ESD Sensitivity (V)				2000		2000
Storage Temperature(°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Operating Temperature (°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Lead Soldering Temperature (°C)				260 for 5 seconds Max		260 for 5 seconds Max

3. High Power LED 3W: SDP6RGB-3W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP6PRGB4303	Red	400	0.95	620	2.00	30	Min
				625	2.2-2.4	35	Avg
				630	2.60	40	Max
	Green	350	1.18	520	3.00	50	Min
				525	3.3-3.6	55	Avg
				530	3.80	60	Max
	Blue	350	1.18	460	3.00	10	Min
				465	3.3-3.6	15	Avg
				470	3.80	25	Max
SDP6PRYG4303	red	400	0.95	620	2.00	30	Min
				625	2.3-2.5	35	Avg
				630	2.60	40	Max
	Green	350	1.18	520	3.00	50	Min
				525	3.3-3.6	55	Avg
				530	3.80	60	Max
	Yellow	400	0.95	585	2.00	10	Min
				590	2.2-2.4	15	Avg
				595	2.60	20	Max
Absolute Maximum Ratings At Ta=25°C
Parameter				Red/Yellow		Blue/Green/White
Viewing Angle(°)				125±5		120±5
Peak Pulsed Forward Current(mA)1/10s				800		800
Reverse Voltage(V)				≥8		≥5
Reverse Current(uA)				≤30		≤50
ESD Sensitivity (V)				2000		2000
Storage Temperature(°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Operating Temperature (°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Lead Soldering Temperature (°C)				260 for 5 seconds Max		260 for 5 seconds Max

4. High Power LED 3W: SDP04/03RGB-3W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP04RGB4303-A Three colors in common anode	Red	400	0.95	620	2.00	25	Min
				625	2.2-2.4	35	Avg
				630	2.60	45	Max
	Green	350	1.18	520	3.00	50	Min
				525	3.3-3.6	55	Avg
				530	3.80	60	Max
	Blue	350	1.18	460	3.00	10	Min
				465	3.3-3.6	15	Avg
				470	3.80	25	Max
SDP04RGB4303-C Three colors in common cathode	red	400	0.95	620	2.00	20	Min
				625	2.3-2.5	30	Avg
				630	2.60	40	Max
	Green	350	1.18	520	3.00	50	Min
				525	3.3-3.6	55	Avg
				530	3.80	60	Max
	Blue	350	1.18	460	3.00	10	Min
				465	3.3-3.6	15	Avg
				470	3.80	25	Max
Absolute Maximum Ratings At Ta=25°C
Parameter				Red/Yellow		Blue/Green/White
Viewing Angle(°)				120±5		120±5
Peak Pulsed Forward Current(mA)1/10s				800		800
Reverse Voltage(V)				≥8		≥5
Reverse Current(uA)				≤30		≤50
ESD Sensitivity (V)				2000		2000
Storage Temperature(°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Operating Temperature (°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Lead Soldering Temperature (°C)				260 for 5 seconds Max		260 for 5 seconds Max

5. High Power LED 3W: SDP48-3W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP48R1430380	Red	1200	3.00	620	2.20	80	Min
				622-626	2.4-2.6	90	Avg
				630	2.80	100	Max
SDP48Y2430380	Yellow	1200	3.00	585	2.00	80	Min
				589-592	2.4-2.6	90	Avg
				595	2.80	100	Max
SDP48B3430340	Blue	1000	3.45	460	3.20	30	Min
				464-467	3.4-3.7	45	Avg
				470	4.00	60	Max
SDP48G6430380	Green	1000	3.45	520	3.20	150	Min
				522-525	3.4-3.7	160	Avg
				530	4.00	200	Max
SDP48W64103100	White	750	2.80	6000	3.20	120	Min
				6500	3.4-3.6	150	Avg
				7000	3.80	180	Max
SDP48W3410380	Warm White	750	2.80	2700	3.20	100	Min
				3000	3.4-3.6	120	Avg
				3300	3.80	150	Max
Absolute Maximum Ratings At Ta=25°C
Parameter				Red/Yellow		Blue/Green/White
Viewing Angle(°)				125±5		125±5
Peak Pulsed Forward Current(mA)1/10s				1500		1500
Reverse Voltage(V)				≥8		≥5
Reverse Current(uA)				≤30		≤50
ESD Sensitivity (V)				2000		2000
Storage Temperature(°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Operating Temperature (°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Lead Soldering Temperature (°C)				260 for 5 seconds Max		260 for 5 seconds Max

6. High Power LED 3W: SDP23-3W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP23R1430380	Red	1200	3.00	620	2.20	75	Min
				622-626	2.4-2.6	85	Avg
				630	2.80	105	Max
SDP23Y2430380	Yellow	1200	3.00	585	2.20	75	Min
				589-592	2.4-2.6	85	Avg
				595	2.80	105	Max
SDP23B3430340	Blue	1000	3.45	460	3.20	30	Min
				464-467	3.4-3.7	45	Avg
				470	4.00	60	Max
SDP23G64303120	Green	1000	3.45	520	3.20	120	Min
				522-525	3.4-3.7	140	Avg
				530	4.00	160	Max
SDP23W6410380	White	1000	3.35	6000	3.20	80	Min
				6500	3.4-3.6	100	Avg
				7000	3.80	120	Max
SDP23W3410360	Warm White	1000	3.35	2700	3.20	60	Min
				3000	3.4-3.6	70	Avg
				3300	3.80	90	Max
Absolute Maximum Ratings At Ta=25°C
Parameter				Red/Yellow		Blue/Green/White
Viewing Angle(°)				125±5		120±5
Peak Pulsed Forward Current(mA)1/10s				2000		2000
Reverse Voltage(V)				≥8		≥5
Reverse Current(uA)				≤30		≤50
ESD Sensitivity (V)				2000		2000
Storage Temperature(°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Operating Temperature (°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Lead Soldering Temperature (°C)				300 for 5 seconds Max		300 for 5 seconds Max

7. High Power LED 3W: SDP13-3W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP13R1430380	Red	400	2.80	620	6.00	75	Min
				622-626	6.70	85	Avg
				630	7.00	105	Max
SDP13Y2430380	Yellow	400	2.80	585	6.00	75	Min
				589-592	6.70	85	Avg
				595	7.00	105	Max
SDP13B3430340	Blue	350	3.40	460	9.00	30	Min
				464-467	9.80	45	Avg
				470	12.00	60	Max
SDP13G64303120	Green	350	3.40	520	9.00	100	Min
				522-525	9.80	120	Avg
				530	12.00	150	Max
SDP13W64303100	White	350	3.40	6000	9.00	100	Min
				6500	9.80	120	Avg
				7000	12.00	140	Max
SDP13W3430380	Warm White	350	3.40	2700	9.00	70	Min
				3000	9.80	85	Avg
				3300	12.00	100	Max
Absolute Maximum Ratings At Ta=25°C
Parameter				Red/Yellow		Blue/Green/White
Viewing Angle(°)				118±5		118±5
Peak Pulsed Forward Current(mA)1/10s				800		800
Reverse Voltage(V)				≥18		≥18
Reverse Current(uA)				≤30		≤50
ESD Sensitivity (V)				2000		2000
Storage Temperature(°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Operating Temperature (°C)				﹣35 ~ ﹢60		﹣35 ~ ﹢60
Lead Soldering Temperature (°C)				300 for 5 seconds Max		300 for 5 seconds Max
