LED High Power 50W, 100W, 300W

SDP50-50W Series

50W LED Red

Picture: 50W LED Red

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP50WR14500501B Red 4000 44.00 620 10.00 1500 Min
625 11.00 1700 Avg
630 12.00 2000 Max
SDP50WY24500501B Yellow 4000 44.00 585 10.00 1500 Min
595 11.50 1700 Avg
595 13.00 2000 Max
SD50WB3450050500 Blue 3200 50.00 460 15.00 500 Min
465 16.00 600 Avg
470 18.00 700 Max
SD50WG64500502B Green 3200 50.00 520 15.00 2000 Min
525 16.00 2500 Avg
530 18.00 3000 Max
SDP50WW64500502B White 3200 50.00 6000 15.00 2000 Min
6500 16.00 2500 Avg
7000 18.00 3000 Max
SDP50WW34500501B Warm White 3200 50.00 2700 15.00 1500 Min
3000 16.00 2000 Avg
3300 18.00 2500 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 105±5 105±5
Peak Pulsed Forward Current(mA)1/10s 5000 5000
Reverse Voltage(V) ≥24 ≥24
Reverse Current(uA) ≤50 ≤50
ESD Sensitivity (V) 2000 2000
Storage Temperature(°C) ﹣35 ~ ﹢60 ﹣35 ~ ﹢60
Operating Temperature (°C) ﹣35 ~ ﹢60 ﹣35 ~ ﹢60
Lead Soldering Temperature (°C) 300 for 5 seconds Max 300 for 5 seconds Max

SDP100-100W Series

100W LED Red

Picture: 100W LED Red

100W LED White

Picture: 100W LED White

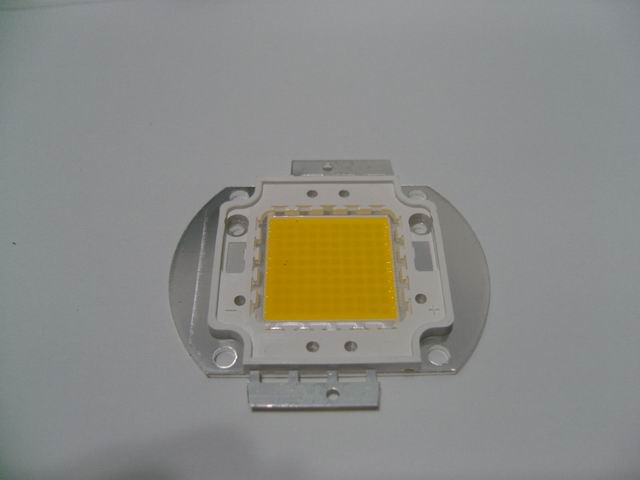

100W Power LED Warm-white

Picture: 100W Power LED Warm-white

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP100WR1410001003A Red 4000 92.00 620 20.00 3000 Min
625 22.00 3500 Avg
630 24.00 4000 Max
SDP100WY2410001003A Yellow 4000 92.00 585 20.00 3000 Min
590 22.00 3500 Avg
595 24.00 4000 Max
SDP100WB3410001001A Blue 3200 100.00 460 30.00 1000 Min
465 32.00 1200 Avg
470 36.00 2000 Max
SDP100WG6410001004A Green 3200 100.00 520 30.00 4000 Min
525 32.00 5000 Avg
530 36.00 6000 Max
SDP100WW6410001004A White 3200 100.00 6000 30.00 4000 Min
6500 32.00 6000 Avg
7000 36.00 8000 Max
SDP100WW3410001003A Warm White 3200 100.00 2700 30.00 3000 Min
3000 32.00 4000 Avg
3300 36.00 5000 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 105±5 105±5
Peak Pulsed Forward Current(mA)1/10s 6000 5000
Reverse Voltage(V) ≥24 ≥24
Reverse Current(uA) ≤30 ≤50
ESD Sensitivity (V) 2000 2000
Storage Temperature(°C) ﹣35 ~ ﹢60 ﹣35 ~ ﹢60
Operating Temperature (°C) ﹣35 ~ ﹢60 ﹣35 ~ ﹢60
Lead Soldering Temperature (°C) 260 for 5 seconds Max 260 for 5 seconds Max

SDP300-300W Series

300W LED RED

Picture: 300W LED RED

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP300WR14100030010A Red 12000 270.00 620 20.00 9000 Min
625 22.00 10000 Avg
630 24.00 12000 Max
SDP300WY24100030010A Yellow 12000 270.00 585 20.00 9000 Min
590 22.00 10000 Avg
595 24.00 12000 Max
SDP300WB3410003003A Blue 9000 270.00 460 30.00 3000 Min
465 32.00 3500 Avg
470 36.00 4000 Max
SDP300WG64100030010B Green 9000 300.00 520 30.00 12000 Min
525 32.00 15000 Avg
530 36.00 20000 Max
SDP300WW64100030010B White 9000 300.00 6000 30.00 13000 Min
6500 32.00 15000 Avg
7000 36.00 20000 Max
SDP300WW34100030010A Warm White 9000 300.00 2700 30.00 9000 Min
3000 32.00 12000 Avg
3300 36.00 15000 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 105±5 105±5
Peak Pulsed Forward Current(mA)1/10s 15000 15000
Reverse Voltage(V) ≥24 ≥24
Reverse Current(uA) ≤100 ≤100
ESD Sensitivity (V) 2000 2000
Storage Temperature(°C) ﹣35 ~ ﹢60 ﹣35 ~ ﹢60
Operating Temperature (°C) ﹣35 ~ ﹢60 ﹣35 ~ ﹢60
Lead Soldering Temperature (°C) 300 for 5 seconds Max 300 for 5 seconds Max
