LED High Power 9W, 10W Series

SDP40-9W Series

High Power LED: SDP40-9W Series

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP40R149010200 Red 1200 8.00 620 6.00 200 Min
625 6.50 300 Avg
630 7.00 400 Max
SDP40Y249010200 Yellow 1200 8.00 585 2.20 200 Min
590 6.50 300 Avg
595 7.00 400 Max
SD40B349010100 Blue 1000 10.00 460 9.00 100 Min
465 10.00 150 Avg
470 11.00 200 Max
SDP40G649010400 Green 1000 10.00 520 9.00 400 Min
525 10.00 500 Avg
530 11.00 600 Max
SDP40W649910300 White 1000 10.00 6000 9.00 300 Min
6500 10.00 400 Avg
7000 11.00 600 Max
SDP40W349910200 Warm White 1000 10.00 2700 9.00 200 Min
3000 10.00 300 Avg
3300 11.00 400 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 120±5 120±5
Peak Pulsed Forward Current(mA)1/10s 2000 2000
Reverse Voltage(V) ≥30 ≥50
Storage Temperature(°C) ﹣35 ~ ﹢60 ﹣35 ~ ﹢60
Operating Temperature (°C) ﹣35 ~ ﹢60 ﹣35 ~ ﹢60
Lead Soldering Temperature (°C) 300 for 5 seconds Max 300 for 5 seconds Max

SDP9C-10W Series

Power LED 10W

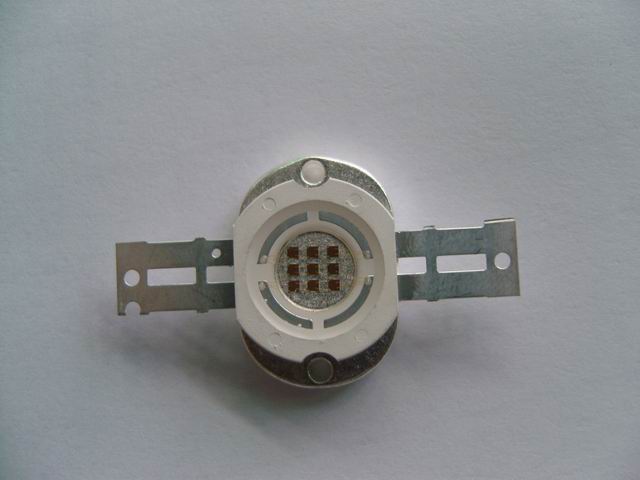

Picture: Power LED 10W

Electrical/Optical characteristics At Ta=25°C

Model No. Emitting Color Forward Current (mA) Power dissipation (W) Wavelength(nm) TC(K) Drive Voltage (V) LuminousFlux (lm)
SDP9CR149010300 Red 1200 8.00 620 6.00 200 Min
625 6.50 300 Avg
630 7.00 400 Max
SDP9CY249010300 Yellow 1200 8.00 585 2.20 200 Min
590 6.50 300 Avg
595 7.00 400 Max
SD9CB349010150 Blue 1000 10.00 460 9.00 100 Min
465 10.00 150 Avg
470 11.00 200 Max
SDP9CG649010500 Green 1000 10.00 520 9.00 400 Min
525 10.00 500 Avg
530 11.00 600 Max
SDP9CW649910500 White 1000 10.00 6000 9.00 300 Min
6500 10.00 500 Avg
7000 11.00 700 Max
SDP9CW349910300 Warm White 1000 10.00 2700 9.00 200 Min
3000 10.00 300 Avg
3300 11.00 400 Max
Absolute Maximum Ratings At Ta=25°C
Parameter Red/Yellow Blue/Green/White
Viewing Angle(°) 115±5 115±5
Peak Pulsed Forward Current(mA)1/10s 2000 2000
Reverse Voltage(V) ≥18 ≥24
Reverse Current(uA) ≤30 ≤50
ESD Sensitivity (V) 2000 2000
Storage Temperature(°C) ﹣35 ~ ﹢60 ﹣35 ~ ﹢60
Operating Temperature (°C) ﹣35 ~ ﹢60 ﹣35 ~ ﹢60
Lead Soldering Temperature (°C) 300 for 5 seconds Max 300 for 5 seconds Max
