LED modules

Applications:Channel letters,Advertising lights

Picture Item No LED Type & No. Color Protection grade
SD12S50RF 2*High flux Red IP68
SD12S50YF Yellow
SD12S50BF Blue
SD12S50GF Green
SD12S50WF white

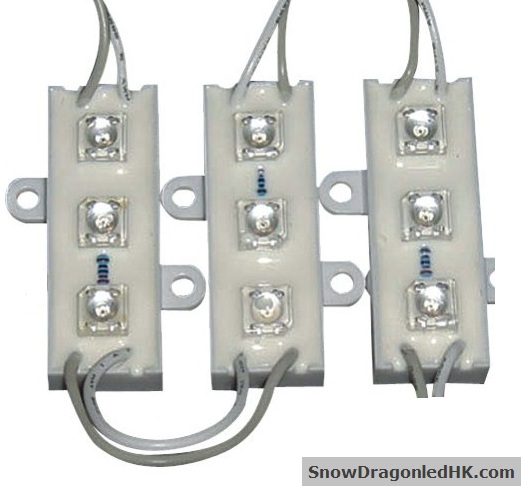

SD813RF 3*High flux Red IP68
SD813YF Yellow
SD813BF Blue
SD813GF Green
SD813WF white

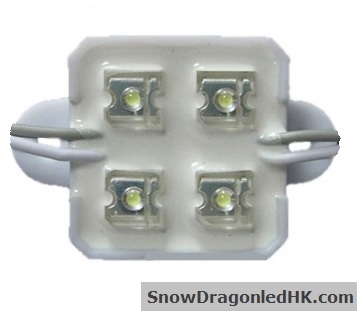

SD814RF 4*High flux Red IP68
SD814YF Yellow
SD814BF Blue
SD814GF Green
SD814WF white
SD715RF 5*High flux Red IP68
SD715YF Yellow
SD715BF Blue
SD715GF Green
SD715WF white
SD255-RF 3*High flux Red IP68
SD255-YF Yellow
SD255-BF Blue
SD255-GF Green
SD255-WF white
SD244-RF 4*High flux Red IP68
SD244-YF Yellow
SD244-BF Blue
SD244-GF Green
SD244-WF white
SD355RF 5*High flux Red IP68
SD355YF Yellow
SD355BF Blue
SD355WF Green
SD355WF white

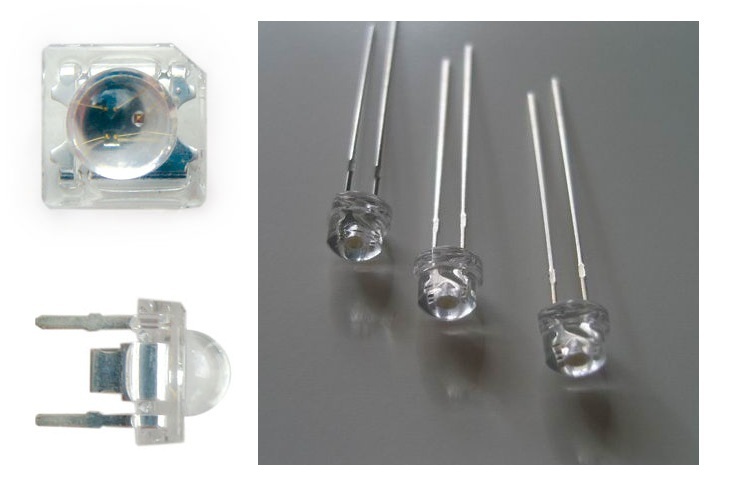

SD636RF 3* Stawhat led Red IP68
SD636YF Yellow
SD636BF Blue
SD636GF Green
SD636wF white
SD637RF 5* Stawhat led Red IP68
SD637YF Yellow
SD637BF Blue
SD637GF Green
SD637WF white
SD1055RGBF 15 RGB IP68
SD656FRGB 6 RGB full color IP68
SD749RGBF 9* Stawhat led RGB IP68

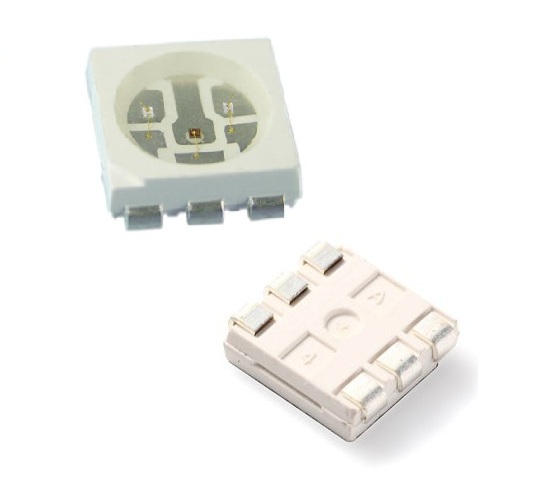

SD38103WF-50 3*SMD 5050 white IP68
SD38103WWF-50 3*SMD 5050 Warm white
SD38103RF-50 3*SMD 5050 Red
SD38103YF-50 3*SMD 5050 Yellow
SD38103BF-50 3*SMD 5050 Blue
SD38103GF-50 3*SMD 5050 Green

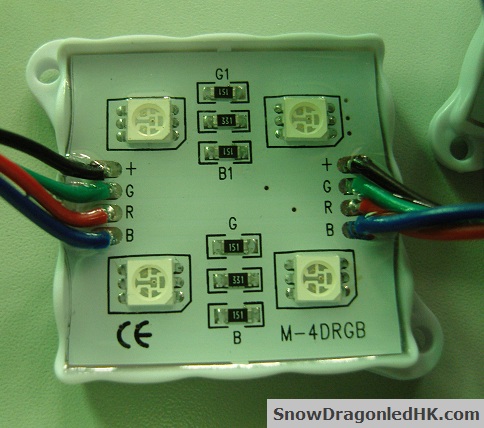

SD38103RGBF-50 3*SMD 5050 RGB
SD38102WF-50 2*SMD 5050 white IP68
SD38102WWF-50 2*SMD 5050 Warm white
SD38102RF-50 2*SMD 5050 Red
SD38102YF-50 2*SMD 5050 Yellow
SD38102BF-50 2*SMD 5050 Blue
SD38102GF-50 2*SMD 5050 Green
SD38102RGBF-50 2*SMD 5050 RGB

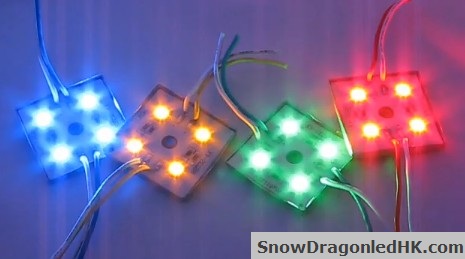

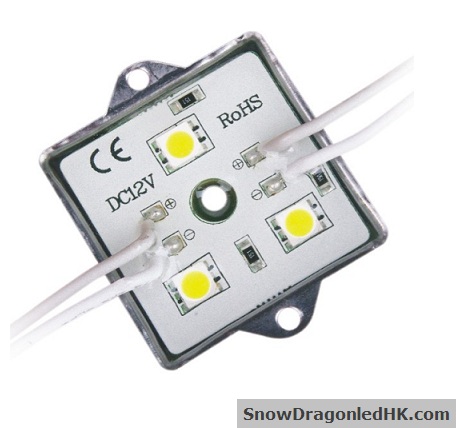

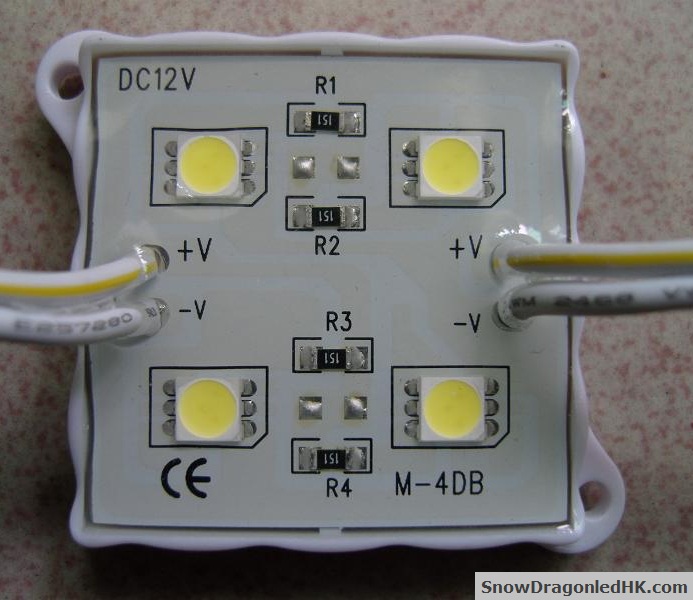

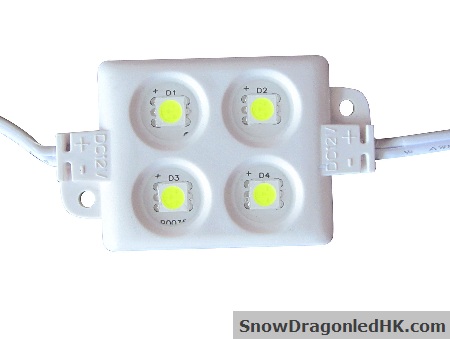

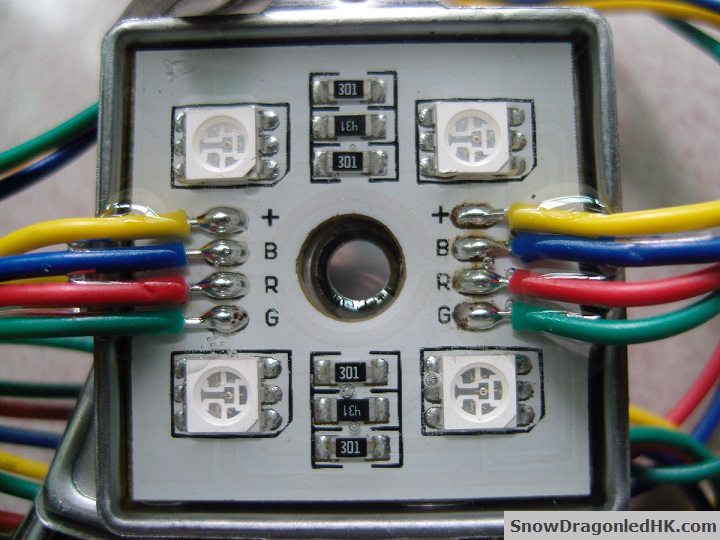

SD384WF-50 4*SMD 5050 white IP68
SD384WWF-50 4*SMD 5050 Warm white
SD384RF-50 4*SMD 5050 Red
SD384YF-50 4*SMD 5050 Yellow
SD384BF-50 4*SMD 5050 Blue
SD384GF-50 4*SMD 5050 Green
SD384RGBF-50 4*SMD 5050 RGB
SD385WF-50 5*SMD 5050 white IP68
SD385WWF-50 5*SMD 5050 Warm white
SD385RF-50 5*SMD 5050 Red
SD385YF-50 5*SMD 5050 Yellow
SD385BF-50 5*SMD 5050 Blue
SD385GF-50 5*SMD 5050 Green
SD385RGBF-50 5*SMD 5050 RGB

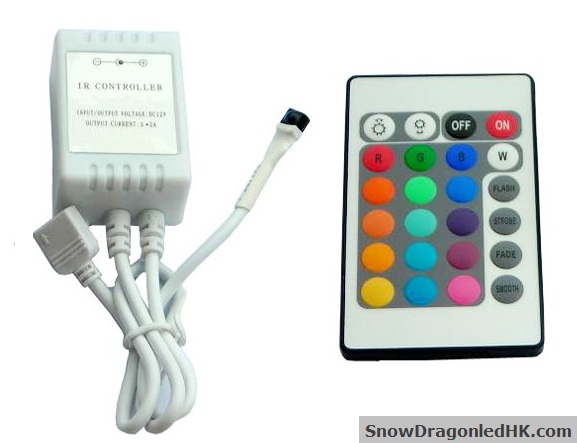

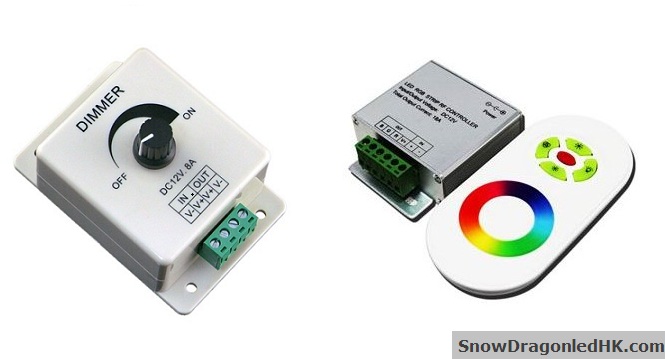

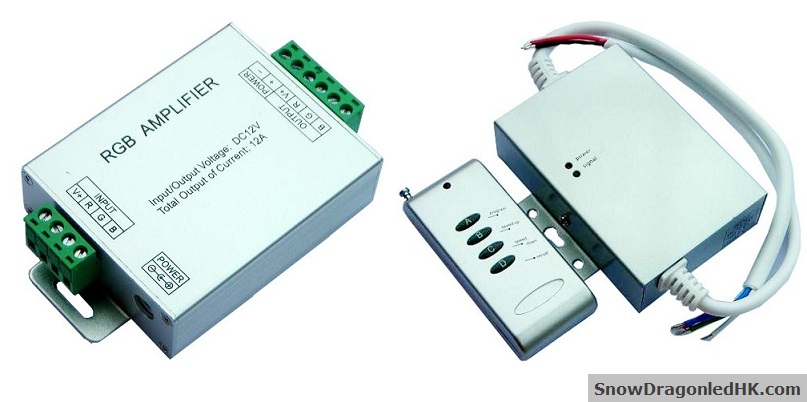

LED strip/led RGB Controller

Name Discription
Controller-01 DC12VRGB 24A 12V 288W
Controller-02 DC5VRGB 5V 120W 24A
Controller-03 DC24VRGB 24V 576W 24A
Controller-04 DC12VRGB 24A 12V 288W
Controller-05 DC5VRGB with remote controller 5V 120W 24A
Controller-06 DC24VRGB with remote controller24V 576W 24A

LED strip Connect Part

Picture Name Discription
Con-01 connector which is used to connect the flexible led strip to power
Con-02 connector which is uesd toconnect 2pcs flexible led strip together with interspace,usually is 20cm long,or you can decide the any length.
Con-03 connector which is used to connect 2pcs flexible led strip together without interspace;
Con-04 Silica gel led strip fix part
Con-05 Silica glue

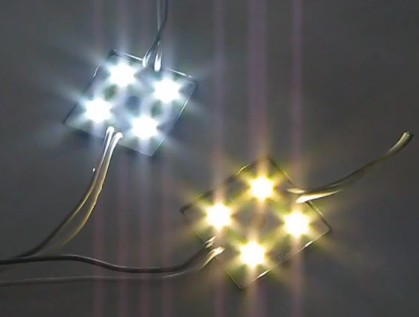

LED modules are widely used in bridges, buildings, squares, windows, bars, KTV, dance hall, advertising and other work lamps, LED are used for Channel letters etc.

Environmental protection and energy saving, life long-term advantage is the largest LED lighting effects according to the needs of process manufacturers, size can also be processed according to the actual size request.

  1. Power: Over 80% lower-cost power than traditional light sources
  2. Long life: Under normal circumstances 15 ~ 20 years, not easilydamaged, very low maintenance costs.
  3. High brightness, rich colors, electrical energy directly transfered into light energy, the axial brightness of the light source is ten times as traditional lights.
  4. Safety: 220V perfect leak electricity-proof design, ultra-safe 12VDC circuit design, it completely eliminate the risk of electric shock.
  5. Easy to use: Common & standard wiring connection & simple fixed method ,easy to learn,can be Installed in a variety of circumstances in rapid speed, Weak or strong light can controlled by unique photographic controller .It can be automatically turned on or off.
