RGB Grow Light LED Modules

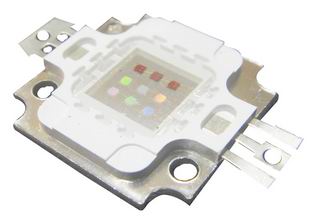

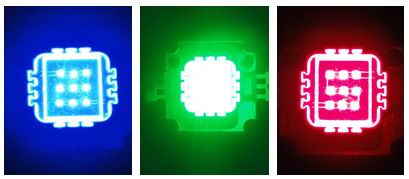

10W RGB Grow Light LED Modules

Model No.	Color	WL(nm)/CCT(K)	Chip Quantity	Chip Brand	Input voltage(V)	Input current (mA)
SD-10WRGB-PLR3	Red	620 - 660nm	3 * 1 = 3	Epileds	6 - 7V	350mA
	Green	520 - 530nm	3 * 1 = 3	Epistar, Bridgelux, Cree	9 - 11V	350mA
	Blue	460 - 470nm	3 * 1 = 3	Epistar, Bridgelux, Cree	9 - 11V	350mA

• Absolute Maximum Ratings At Ta=25°C
• Viewing Angle(°): 120±5
• CRI: 70-95 Ra are available
• Gold thread spec: 1.2mil Au
• ESD Sensitivity(V): 4000
• Storage Temperature(°C): -35 ~ +100
• Operating Temperature(°C): 350 for 5 seconds Max
• Lead Soldering Temperature(°C): -35 ~ +80

20W RGB Grow Light LED Modules

Model No.	Color	WL(nm)/CCT(K)	Chip Quantity	Chip Brand	Input voltage(V)	Input current (mA)
SD-20WRGB-PLR3	Red	620 - 660nm	6 * 1 = 6	Epileds	12 - 14V	350mA
	Green	520 - 530nm	6 * 1 = 6	Epistar, Bridgelux, Cree	18 - 20V	350mA
	Blue	460 - 470nm	6 * 1 = 6	Epistar, Bridgelux, Cree	18 - 20V	350mA

• Absolute Maximum Ratings At Ta=25°C
• Viewing Angle(°): 120±5
• CRI: 70-95 Ra are available
• Gold thread spec: 1.2mil Au
• ESD Sensitivity(V): 4000
• Storage Temperature(°C): -35 ~ +100
• Operating Temperature(°C): 350 for 5 seconds Max
• Lead Soldering Temperature(°C): -35 ~ +80

40W RGB Grow Light LED Modules

Model No.	Color	WL(nm)/CCT(K)	Chip Quantity	Chip Brand	Input voltage(V)	Input current (mA)
SD-40WRGBW-PLR4	Red	620 - 660nm	5 * 2 = 10	Epileds	10 - 12V	700mA
	Green	520 - 530nm	5 * 2 = 10	Epistar, Bridgelux, Cree	15 - 17V	700mA
	Blue	460 - 470nm	5 * 2 = 10	Epistar, Bridgelux, Cree	15 - 17V	700mA
	White	6000 - 7000K	5 * 2 = 10	Epistar, Bridgelux, Cree	15 - 17V	700mA

• Absolute Maximum Ratings At Ta=25°C
• Viewing Angle(°): 120±5
• CRI: 70-95 Ra are available
• Gold thread spec: 1.2mil Au
• ESD Sensitivity(V): 4000
• Storage Temperature(°C): -35 ~ +100
• Operating Temperature(°C): 350 for 5 seconds Max
• Lead Soldering Temperature(°C): -35 ~ +80

50W RGB Grow Light LED Modules

Model No.	Color	WL(nm)/CCT(K)	Chip Quantity	Chip Brand	Input voltage(V)	Input current (mA)
SD-50WRGB-PLR3	Red	620 - 660nm	8 * 2 = 16	Epileds	16 - 18V	700mA
	Green	520 - 530nm	8 * 2 = 16	Epistar, Bridgelux, Cree	24 - 26V	700mA
	Blue	460 - 470nm	8 * 2 = 16	Epistar, Bridgelux, Cree	24 - 26V	700mA

• Absolute Maximum Ratings At Ta=25°C
• Viewing Angle(°): 120±5
• CRI: 70-95 Ra are available
• Gold thread spec: 1.2mil Au
• ESD Sensitivity(V): 4000
• Storage Temperature(°C): -35 ~ +100
• Operating Temperature(°C): 350 for 5 seconds Max
• Lead Soldering Temperature(°C): -35 ~ +80

90W RGB Grow Light LED Modules

Model No.	Color	WL(nm)/CCT(K)	Chip Quantity	Chip Brand	Input voltage(V)	Input current (mA)
SD-90WRGB-PLR3	Red	620 - 660nm	10 * 3 = 30	Epileds	20 - 24V	1050mA
	Green	520 - 530nm	10 * 3 = 30	Epistar, Bridgelux, Cree	32 - 34V	1050mA
	Blue	460 - 470nm	10 * 3 = 30	Epistar, Bridgelux, Cree	32 - 34V	1050mA

• Absolute Maximum Ratings At Ta=25°C
• Viewing Angle(°): 120±5
• CRI: 70-95 Ra are available
• Gold thread spec: 1.2mil Au
• ESD Sensitivity(V): 4000
• Storage Temperature(°C): -35 ~ +100
• Operating Temperature(°C): 350 for 5 seconds Max
• Lead Soldering Temperature(°C): -35 ~ +80

100W RGB Grow Light LED Modules

Model No.	Color	WL(nm)/CCT(K)	Chip Quantity	Chip Brand	Input voltage(V)	Input current (mA)
SD-100WRGB-PLR3	Red	620 - 660nm	10 * 3 = 30	Epileds	20 - 24V	1050mA
	Green	520 - 530nm	10 * 4 = 40	Epistar, Bridgelux, Cree	32 - 34V	1400mA
	Blue	460 - 470nm	10 * 3 = 30	Epistar, Bridgelux, Cree	32 - 34V	1050mA

• Absolute Maximum Ratings At Ta=25°C
• Viewing Angle(°): 120±5
• CRI: 70-95 Ra are available
• Gold thread spec: 1.2mil Au
• ESD Sensitivity(V): 4000
• Storage Temperature(°C): -35 ~ +100
• Operating Temperature(°C): 350 for 5 seconds Max
• Lead Soldering Temperature(°C): -35 ~ +80

120W RGB Grow Light LED Modules

Model No.	Color	WL(nm)/CCT(K)	Chip Quantity	Chip Brand	Input voltage(V)	Input current (mA)
SD-120WRGB-PLR3	Red	620 - 660nm	10 * 4 = 40	Epileds	20 - 24V	350mA
	Green	520 - 530nm	10 * 4 = 40	Epistar, Bridgelux, Cree	32 - 34V	350mA
	Blue	460 - 470nm	10 * 4 = 40	Epistar, Bridgelux, Cree	32 - 34V	350mA

• Absolute Maximum Ratings At Ta=25°C
• Viewing Angle(°): 120±5
• CRI: 70-95 Ra are available
• Gold thread spec: 1.2mil Au
• ESD Sensitivity(V): 4000
• Storage Temperature(°C): -35 ~ +100
• Operating Temperature(°C): 350 for 5 seconds Max
• Lead Soldering Temperature(°C): -35 ~ +80

150w, 200w,300w,500w,600w,800w,1000w,1200w Customized Grow Light LED Modules

Model No.	Color	WL(nm)/CCT(K)	Chip Quantity	Chip Brand	Input voltage(V)	Input current (mA)
Customized 150w 200w, 300w, 500w, 600w, 800w, 1000w, 1200w Customized Grow Light LED Modules: Red, Green, Blue, White, Yellow, UV, Far Red led source	Red	620 - 630nm	1pc	Epileds	2.0 - 2.2V	350mA
	Red	650 - 660nm	1pc	Epileds	2.2 - 2.4V	350mA
	Far Red	730nm	1pc	AOT	1.6 - 2.0V	350mA
	Green	520 - 530nm	1pc	Epistar, Bridgelux, Cree	3.2 - 3.4V	350mA
	Blue	450 - 470nm	1pc	Epistar, Bridgelux, Cree	3.2 - 3.4V	350mA
	White	2100 - 18000K	1pc	Epistar, Bridgelux, Cree	3.2 - 3.4V	350mA
	Yellow	585 - 600nm	1pc	Epileds	2.2 - 2.4V	350mA
	UV	360 - 370nm	1pc	Epileds	3.0 - 3.4V	350mA
	UV	370 - 380nm	1pc	Epileds	3.0 - 3.4V	350mA
	UV	380 - 400nm	1pc	Epileds	3.0 - 3.4V	350mA
	UV	400 - 410nm	1pc	Epileds	3.0 - 3.4V	350mA
	Pink	75% Red + 20% Blue + 5% UV/Green + Orange

*Remark for reference： Different wavelength(660nm/630nm/520nm/460nm/730nm,400nm etc) and light ratio(3:1,4:1,5:1,8;1,etc) for your customizing!Electrical/Optical Characteristics As above is based on every LED Chip, so you should calculate the electrical characteristics multiplied by LED Chip Quantity according to your request.

• Absolute Maximum Ratings At Ta=25°C
• Viewing Angle(°): 140±5
• CRI: 70-95 Ra are available
• Gold thread spec: 1.2mil Au
• ESD Sensitivity(V): 4000
• Storage Temperature(°C): -35 ~ +100
• Operating Temperature(°C): 350 for 5 seconds Max
• Lead Soldering Temperature(°C): -35 ~ +80
