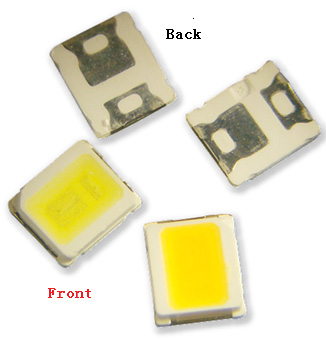

SMD3328 LED For Indoor Lighting

3328 LED Ultra-thin White Light Series

Brief Description of 3328 LED Ultra-thin White Light Series

  1. High luminous flux: 16-55Lm
  2. Low voltage: 2.9-3.2V
  3. Very good lighting effect: 100-135Lm/w
  4. Bring thermal sink into use, good heat dissipation, Long life
  5. Square bowl structure, no dark space due to module lighting
  6. Wide-Angle Structure design: 120, beautiful light emitting
  7. Low cost because of mass production
  8. Sensitive to ESD
  9. Emitting color: Pure white & warm white
  10. Shell: White
  11. Application
    Widely applied in lighting field
    • Fluorescent light
    • Panel light
    • Ball bulb

Model N.O Voltage
(V)
Luminous
(LM)
Color
Temperture
(K)
Coloration Lighting
Effect
Lm/W
Viewing
Angle
(Tpy.°)
Test
Condition
Power
(W)
SD-SA3328WH-AP 2.9-3.0 16-18 6000 73 135 120° 40mA 0.12W
SD-SA3328WH-R8-AP 14-16 83 125
SD-SA3328WH-R9-AP 12-14 93 100
SD-SA3328WY-AP 3.0-3.1 16-18 3000 73 130
SD-SA3328WY-R8-AP 14-16 83 120
SD-SMA3328WH-AP 3.0-3.2 55-60 6000 73 110 120 150mA 0.5W
SD-SMA3328WH-R8-AP 50-55 83 100
SD-SMA3328WY-AP 55-60 3000 73 110
SD-SMA3328WY-R8-AP 50-55 83 100
