Top SMD1010 LED Full-color Series

For Indoor full-color Display P1.8, P2.0, P2.5

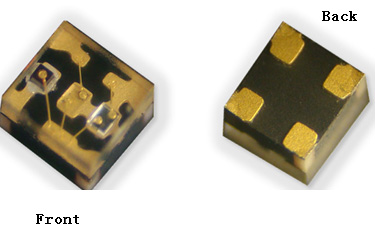

Brief Description of Top SMD 1010 LED Full-color Series

  1. Small Size: 1.0*1.1*0.65 mm ,closer dot-pitch & high reliability can come true
  2. Emitting color: RGB
  3. Viewing angle(Typ.): 120°
  4. Encapsulation type: Mould pressing & injection molding technology
  5. Excellent color matching & luminous intensity distribution: Chips put in horizontal order so that the optical mixing is uniform
  6. High contrast & clarity ratio: Black shell without reflection
  7. Low moisture absorption: epoxy resin + BT glass fiber circuit board
  8. Sensitive to ESD
  9. Package: 3000pcs/bag
  10. Application
    Widely applied in indoor full-color display P1.8, P2.0, P2.5
    • War room
    • Studio or Broadcast room
    • LED TV

Part Number Luminous
Intensity
(mcd)
Forward
Voltage
(V)
Dominant
Wavelength
(nm)
Viewing
Angle
(Typ. °)
If(mA) Reverse
Current
(uA) Vr=9V
Min Max Min Max Min Max
SD-S1010FCECH-AP 110 160 1.9 2.2 620 630 120 20 1uA(MAX.)
120 320 2.9 3.4 520 530 120 20
40 60 3.0 3.5 465 475 120 20



Download Specifications of Top SMD1010 LED Full-color Series
