4W LED Candle Light Heat Sink-SD43X

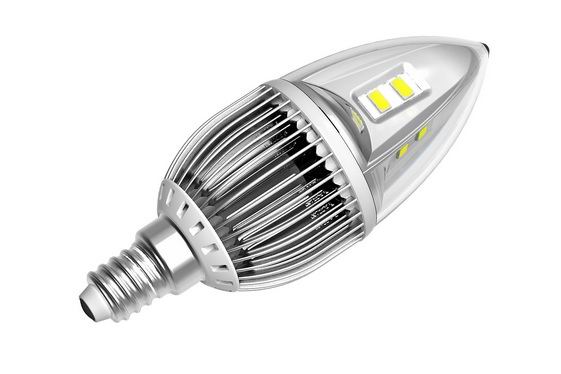

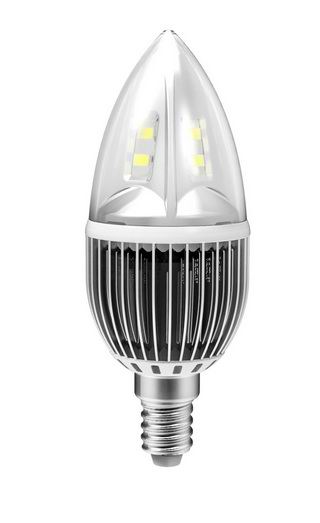

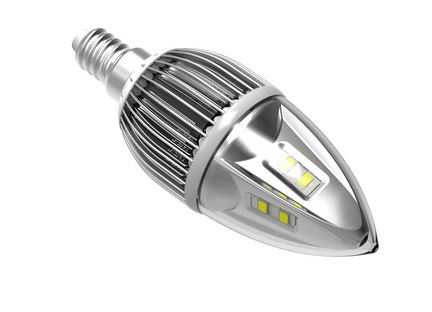

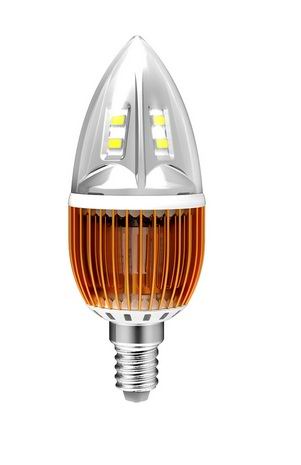

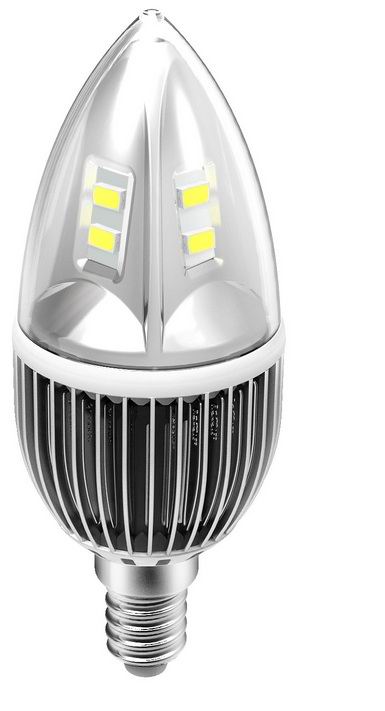

Photo Display:

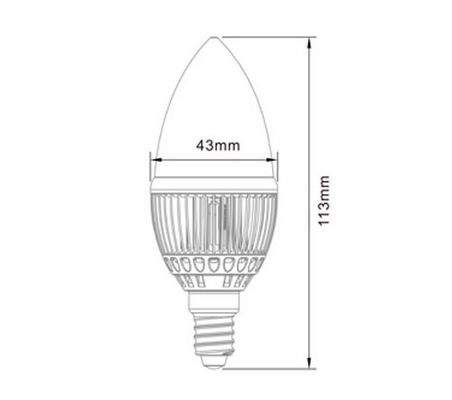

Size:
Parameters
| Power(W) | 4 |
| Voltage(V) | 12 |
| Current(mA) | 300 |
| CHIP Model | 5630 |
| LED QTY(pcs) | 4 |
| Any way | 1P4S |
| PCB size(mm) | Φ32﹡2.0 |
Brief Description of 4W LED Candle Light Heat Sink-SD43X
- Piece of fins: 0.4 * 32 Pcs
- Cooling area: 175 CM2
- Applicable power: 4W
- Weight: 38g (included base)
- Dimension: Φ43x113mm
- Compatible base: GU10, GU5.3, MR16, E26/E27, E14
- Structure of the whole lamp: Heatsink+aluminum plate+power supply+lighting source.
- Available parts: aluminum plate
- Customer DIY: power supply+lighting source
Application:
Widely used in hotel, restaurant,supermarket,museum,living room,dining room,sleeping room and so on.
