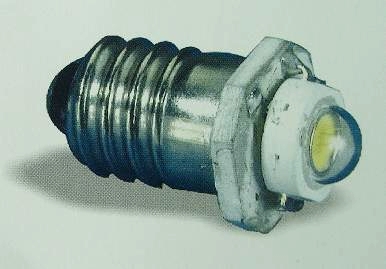

Led High Power 1W

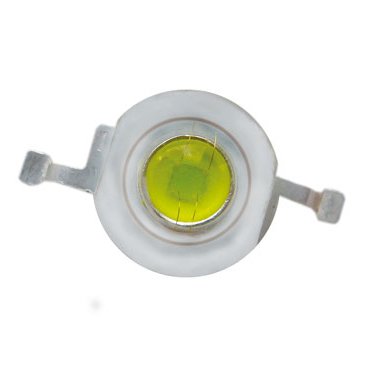

Picture: Power LED 1W

1. Led high power 1W: SDPA4-1W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDPA4R1410130	Red	400	0.95	620	2.00	35	Min
				622-626	2.2-2.4	45	Avg
				630	2.60	55	Max
SDPA4Y2410130	Yellow	400	0.95	585	2.00	25	Min
				589-592	2.2-2.4	35	Avg
				595	2.60	45	Max
SDPA4B3410110	Blue	350	1.18	460	3.00	10	Min
				464-467	3.3-3.6	15	Avg
				470	3.80	25	Max
SDPA4G6410150	Green	350	1.18	520	3.00	50	Min
				522-525	3.3-3.6	60	Avg
				530	3.80	70	Max
SDPA4W6410170	White	350	1.05	6000	3.00	70	Min
				6500	3.2-3.5	90	Avg
				7000	3.80	120	Max
SDPA4W6410160	Warm white	350	1.05	2700	3.00	50	Min
				3000	3.2-3.5	70	Avg
				3300	3.80	90	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		125±5			120±5
Peak Pulsed Forward Current (mA)1/10s		800			800
Reverse Voltage (V)		≥8			≥5
Reverse Current(uA)		≤10			≤10
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Operating Temperature (°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Lead Soldering Temperature (°C)		260 for 5 seconds Max			260 for 5 seconds Max

2. Led high power 1W: SDP04-1W series

Electrical/Optical characteristics At Ta=25°

Model No.	Emitting Color	Forward Current (mA)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)	Power dissipation (W)
SDP04W6410170	White	350	6000-7000	3.2-3.8	70-80	1.25
SDP04W6410180	White	350	6000-7000	3.2-3.8	80-90	1.25
SDP04W6410190	White	350	6000-7000	3.0-3.5	90-100	1.08
SDP04W64101100	White	350	6000-7000	3.0-3.5	100-110	1.08
SDP04W64101110	White	350	6000-7000	3.0-3.5	110-120	1.08
SDP04W64101120	White	350	6000-7000	3.0-3.5	120-140	1.08
Absolute Maximum Ratings At Ta=25°C
Parameter		Blue/Green/White
Viewing Angle(°)		120±5
Peak Pulsed Forward Current (mA)1/10s		800
Reverse Voltage (V)		≥5
Reverse Current(uA)		≤10
ESD Sensitivity (V)		2000
Storage Temperature(°C)		﹣35 ~ ﹢60
Operating Temperature (°C)		﹣35 ~ ﹢60
Lead Soldering Temperature (°C)		260 for 5 seconds Max

3. Led high power 1W: SD03/A3-1W series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP03R1410130	Red	400	0.95	620	2.00	35	Min
				622-626	2.2-2.4	45	Avg
				630	2.60	55	Max
SD03Y2410130	Yellow	400	0.95	585	2.00	25	Min
				589-592	2.2-2.4	35	Avg
				595	2.60	45	Max
SDP03B3410110	Blue	350	1.18	460	3.00	10	Min
				464-467	3.3-3.6	15	Avg
				470	3.80	25	Max
SDP03G6410150	Green	350	1.18	520	3.00	50	Min
				522-525	3.3-3.6	60	Avg
				530	3.80	70	Max
SDP03W6410170	White	350	1.05	6000	3.00	70	Min
				6500	3.2-3.5	90	Avg
				7000	3.80	120	Max
SDP03W6410160	Warm white	350	1.05	2700	3.00	50	Min
				3000	3.2-3.5	70	Avg
				3300	3.80	90	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		125±5			120±5
Peak Pulsed Forward Current (mA)1/10s		800			800
Reverse Voltage (V)		≥8			≥5
Reverse Current(uA)		≤10			≤10
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Operating Temperature (°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Lead Soldering Temperature (°C)		260 for 5 seconds Max			260 for 5 seconds Max

4. Led high power 1W: SDP19-1W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP19IR4101	Red	500	0.85	848	1.65	400mW	Min
				850	1.70	450mW	Avg
				852	1.75	500mW	Max
SDP19R14101	red	400	0.95	620	2.00	25	Min
				622-626	2.2-2.4	35	Avg
				630	2.60	45	Max
SDP19Y24101	Yellow	400	0.95	585	2.00	25	Min
				589-592	2.2-2.4	35	Avg
				595	2.60	45	Max
SDP19B34101	Blue	350	1.18	460	3.00	10	Min
				464-467	3.3-3.6	15	Avg
				470	3.80	25	Max
SDP19G64101	Green	350	1.18	520	3.00	40	Min
				522-525	3.3-3.6	50	Avg
				530	3.80	60	Max
SDP19W64101	White	350	1.05	6000	3.00	40	Min
				6500	3.2-3.5	60	Avg
				7000	3.80	90	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		105±5			105±5
Peak Pulsed Forward Current (mA)1/10s		800			800
Reverse Voltage (V)		≥8			≥5
Reverse Current(uA)		≤10			≤10
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣45 ~ ﹢80			﹣45 ~ ﹢80
Operating Temperature (°C)		﹣40 ~ ﹢55			﹣40 ~ ﹢55
Lead Soldering Temperature (°C)		260 for 5 seconds Max			260 for 5 seconds Max

5. Led high power 1W: SDPTP-1W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDPTPR1410130	Red	400	0.95	620	2.00	30	Min
				622-626	2.2-2.4	40	Avg
				630	2.60	50	Max
SDPTPY2410130	Yellow	400	0.95	585	2.00	20	Min
				589-592	2.2-2.4	30	Avg
				595	2.60	40	Max
SDPTPB3410110	Blue	350	1.18	460	3.00	8	Min
				464-467	3.3-3.6	12	Avg
				470	3.80	20	Max
SDPTPG6410150	Green	350	1.18	520	3.00	50	Min
				522-525	3.3-3.6	55	Avg
				530	3.80	60	Max
SDPTPW6410160	White	350	1.05	6000	3.00	60	Min
				6500	3.2-3.5	80	Avg
				7000	3.80	120	Max
SDPTPW3410170	Warm White	350	1.05	2700	3.00	40	Min
				3000	3.2-3.5	60	Avg
				3300	3.80	80	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		100±5			100±5
Peak Pulsed Forward Current (mA)1/10s		800			800
Reverse Voltage (V)		≥8			≥5
Reverse Current(uA)		≤20			≤30
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Operating Temperature (°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Lead Soldering Temperature (°C)		260 for 5 seconds Max			260 for 5 seconds Max

6. Led high power 1W: SDPXT-1W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDPXTR1410130	Red	400	0.95	620	2.00	25	Min
				622-626	2.2-2.4	35	Avg
				630	2.60	45	Max
SDPXTY2410130	Yellow	400	0.95	585	2.00	25	Min
				589-592	2.2-2.4	35	Avg
				595	2.60	45	Max
SDPXTB3410110	Blue	350	1.18	460	3.00	10	Min
				464-467	3.3-3.6	15	Avg
				470	3.80	25	Max
SDPXTG6410150	Green	350	1.18	520	3.00	50	Min
				522-525	3.3-3.6	55	Avg
				530	3.80	60	Max
SDPXTW6410160	White	350	1.05	6000	3.00	50	Min
				6500	3.2-3.5	60	Avg
				7000	3.80	80	Max
SDPXTW3410150	Warm White	350	1.05	2700	3.00	30	Min
				3000	3.2-3.5	50	Avg
				3300	3.80	60	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		105±5			105±5
Peak Pulsed Forward Current (mA)1/10s		800			800
Reverse Voltage (V)		≥8			≥5
Reverse Current(uA)		≤20			≤30
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Operating Temperature (°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Lead Soldering Temperature (°C)		260 for 5 seconds Max			260 for 5 seconds Max

7. Led high power 1W: SDPDT-1W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDPDTR1410130	Red	400	0.95	620	2.00	25	Min
				622-626	2.2-2.4	35	Avg
				630	2.60	45	Max
SDPDTY2410130	Yellow	400	0.95	585	2.00	25	Min
				589-592	2.2-2.4	35	Avg
				595	2.60	45	Max
SDPDTB3410110	Blue	350	1.18	460	3.00	10	Min
				464-467	3.3-3.6	15	Avg
				470	3.80	25	Max
SDPDTG6410150	Green	350	1.18	520	3.00	50	Min
				522-525	3.3-3.6	55	Avg
				530	3.80	60	Max
SDPDTW6410170	White	350	1.05	6000	3.00	50	Min
				6500	3.2-3.5	70	Avg
				7000	3.80	90	Max
SDPDTW3410150	Warm White	350	1.05	2700	3.00	40	Min
				3000	3.2-3.5	50	Avg
				3300	3.80	70	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		125±5			120±5
Peak Pulsed Forward Current (mA)1/10s		800			800
Reverse Voltage (V)		≥8			≥5
Reverse Current(uA)		≤20			≤30
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Operating Temperature (°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Lead Soldering Temperature (°C)		260 for 5 seconds Max			260 for 5 seconds Max

8. Led high power 1W: SDP06-1W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP06R1410130	Red	400	0.95	620	2.00	25	Min
				622-626	2.2-2.4	35	Avg
				630	2.60	45	Max
SDP06Y2410130	Yellow	400	0.95	585	2.00	25	Min
				589-592	2.2-2.4	35	Avg
				595	2.60	45	Max
SDP06B3410110	Blue	350	1.18	460	3.00	10	Min
				464-467	3.3-3.6	15	Avg
				470	3.80	25	Max
SDP06G6410150	Green	350	1.18	520	3.00	50	Min
				522-525	3.3-3.6	55	Avg
				530	3.80	60	Max
SDP06W6410180	White	350	1.05	6000	3.00	70	Min
				6500	3.2-3.5	90	Avg
				7000	3.80	110	Max
SDP06W3410160	Warm White	350	1.05	2700	3.00	50	Min
				3000	3.2-3.5	60	Avg
				3300	3.80	80	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		125±5			120±5
Peak Pulsed Forward Current (mA)1/10s		800			800
Reverse Voltage (V)		≥8			≥5
Reverse Current(uA)		900			900
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Operating Temperature (°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Lead Soldering Temperature (°C)			260 for 5 seconds Max				260 for 5 seconds Max

9. Led high power 1W: SDP92-1W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP92R1410130	Red	400	0.95	620	2.00	20	Min
				622-626	2.2-2.4	30	Avg
				630	2.60	40	Max
SDP92Y2410130	Yellow	400	0.95	585	2.00	20	Min
				589-592	2.2-2.4	30	Avg
				595	2.60	40	Max
SDP92B3410110	Blue	350	1.18	460	3.00	10	Min
				464-467	3.3-3.6	15	Avg
				470	3.80	20	Max
SDP92G6410150	Green	350	1.18	520	3.00	50	Min
				522-525	3.3-3.6	55	Avg
				530	3.80	60	Max
SDP92W6410170	White	350	1.05	6000	3.00	50	Min
				6500	3.2-3.5	70	Avg
				7000	3.80	90	Max
SDP92W3410160	Warm White	350	1.05	2700	3.00	40	Min
				3000	3.2-3.5	60	Avg
				3300	3.80	80	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		115±5			115±5
Peak Pulsed Forward Current (mA)1/10s		800			800
Reverse Voltage (V)		≥8			≥5
Reverse Current(uA)		≤20			≤30
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Operating Temperature (°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Lead Soldering Temperature (°C)		260 for 5 seconds Max			260 for 5 seconds Max

10. Led high power 1W: SDPL1-1W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDPL1R1410130	Red	400	0.95	620	2.00	25	Min
				622-626	2.2-2.4	35	Avg
				630	2.60	45	Max
SDPL1Y2410130	Yellow	400	0.95	585	2.00	25	Min
				589-592	2.2-2.4	35	Avg
				595	2.60	45	Max
SDPL1B3410110	Blue	350	1.18	460	3.00	10	Min
				464-467	3.3-3.6	15	Avg
				470	3.80	25	Max
SDPLXG6410130	Green	350	1.18	520	3.00	25	Min
				522-525	3.3-3.6	35	Avg
				530	3.80	45	Max
SDPL1W6410150	White	350	1.05	6000	3.00	50	Min
				6500	3.2-3.5	80	Avg
				7000	3.80	120	Max
SDPL1W3410140	Warm White	350	1.05	2700	3.00	40	Min
				3000	3.2-3.5	60	Avg
				3300	3.80	100	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		125±5			120±5
Peak Pulsed Forward Current (mA)1/10s		900			900
Reverse Voltage (V)		≥8			≥5
Reverse Current(uA)		900			900
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣40 ~ ﹢100			﹣40 ~ ﹢100
Operating Temperature (°C)		﹣30 ~ ﹢55			﹣40 ~ ﹢55
Lead Soldering Temperature (°C)		260 for 5 seconds Max			260 for 5 seconds Max

11. Led high power 1W: SDP20-1W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP20R1410130	Red	400	0.95	620	2.00	25	Min
				622-626	2.2-2.4	35	Avg
				630	2.60	45	Max
SDP20Y2410130	Yellow	400	0.95	585	2.00	25	Min
				589-592	2.2-2.4	35	Avg
				595	2.60	45	Max
SDP20B3410110	Blue	350	1.18	460	3.00	10	Min
				464-467	3.3-3.6	15	Avg
				470	3.80	25	Max
SDP20G6410150	Green	350	1.18	520	3.00	50	Min
				522-525	3.3-3.6	55	Avg
				530	3.80	60	Max
SDP20W6410150	White	350	1.05	6000	3.00	30	Min
				6500	3.2-3.5	50	Avg
				7000	3.80	80	Max
SDP20W3410140	Warm White	350	1.05	2700	3.00	25	Min
				3000	3.2-3.5	45	Avg
				3300	3.80	65	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		115±5			115±5
Peak Pulsed Forward Current (mA)1/10s		800			800
Reverse Voltage (V)		≥20			≥30
Reverse Current(uA)		≤20			≤30
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Operating Temperature (°C)		﹣30 ~ ﹢55			﹣40 ~ ﹢60
Lead Soldering Temperature (°C)		300 for 5 seconds Max			300 for 5 seconds Max

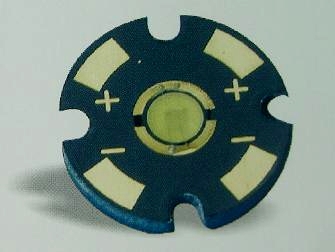

12. Led high power 1W: SDP12-1W Series

Electrical/Optical characteristics At Ta=25°C

Model No.	Emitting Color	Forward Current (mA)	Power dissipation (W)	Wavelength(nm) TC(K)	Drive Voltage (V)	LuminousFlux (lm)
SDP12R1410130	Red	400	0.95	620	2.00	25	Min
				625	2.2-2.4	35	Avg
				630	2.60	45	Max
SDP12Y2410130	Yellow	400	0.95	585	2.00	25	Min
				590	2.2-2.4	35	Avg
				595	2.60	45	Max
SDP12B3410110	Blue	350	1.18	460	3.00	10	Min
				465	3.3-3.6	15	Avg
				470	3.80	25	Max
SDP12G6410150	Green	350	1.18	520	3.00	50	Min
				525	3.3-3.6	55	Avg
				530	3.80	60	Max
SDP12W6410180	White	350	1.05	6000	3.00	70	Min
				6500	3.3-3.6	90	Avg
				7000	3.80	110	Max
SDP12W3410160	Warm White	350	1.05	2700	3.00	50	Min
				3000	3.3-3.6	60	Avg
				3300	3.80	80	Max
Absolute Maximum Ratings At Ta=25°C
Parameter		Red/Yellow			Blue/Green/White
Viewing Angle(°)		125±5			120±5
Peak Pulsed Forward Current (mA)1/10s		1000			1000
Reverse Voltage (V)		≥8			≥5
Reverse Current(uA)		≤20			≤30
ESD Sensitivity (V)		2000			2000
Storage Temperature(°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Operating Temperature (°C)		﹣35 ~ ﹢60			﹣35 ~ ﹢60
Lead Soldering Temperature (°C)		300 for 5 seconds Max			300 for 5 seconds Max
